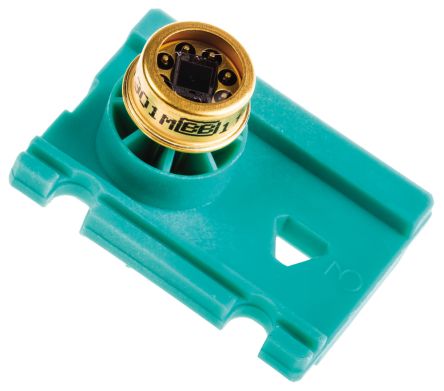

OPT301M
| Manufacturer | |
| Description | Photodetector 8-Pin TO-99 Tube Optical Sensors - Light To Frequency & Light To Voltage Integr Photodiode and Amp IC PHOTODIODE/AMPLIFIER TO-99-8 Texas Instruments OPT301M Infrared Photodetector Amplifier, Through-hole TO-99 Package Light To Frequency & Light To Voltage Integr Photodiode and Amp PHOTODIODE Integrated Photodiode and Amplifier Texas Instruments 650nm 红外 光探测器放大器, 通孔安装 TO-99 封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Light to Voltage Converters | Product Category | Optical Sensors - Light To Frequency & Light To Voltage |
| Standard Package | Rail / Tube | Factory Pack Quantity | 20 |
| Standard Package Name | TO-99 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | ||
Electrical
| Wavelength | 650nm | Output Type | Current |
| Sensitivity | :0.47A/W | Spectral Range | Infrared |
| Voltage Rating | ±2.25 | Frequency - Max | 4 kHz |
| Rise Time (Typ) | 90000 ns | Current - Output | 400 uA |
| Voltage - Supply | 2.25 to 18 V | Responsivity @ nm | 0.47A/W |
| Wavelength - Peak | 650 nm | Diode Configuration | :TO-99 |
| Proximity Detection | No | Current - Dark (Typ) | :500fA |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | 2 |
| Voltage - Supply (Min) | ±18 | ||
Mechanical
| Width | 9.08mm | Height | 4.4mm |
| Length | 9.08mm | Weight | 0.0001 |
| Bandwidth | :4kHz | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Optic Material | :TO-99 | Package / Case | 8TO-99 |
| Package Cooled | TO-99 | Package Quantity | TO-99 |
| Size / Dimension | 9.08 x 9.08 x 4.4mm | Diameter - Outside | 8.96 |
| Number of Positions | 8 | Shell Size - Insert | 3.99 |
| Supplier Device Package | TO-99 | ||
Product Info
| Series | OPT301 | Software | SBBS001 |
| Active Area | :5.2mm² | Functional Diagram | fbd_sbbs001.gif |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Mechanical Life | NRND: Not recommended for new designs. | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 125C | ||
