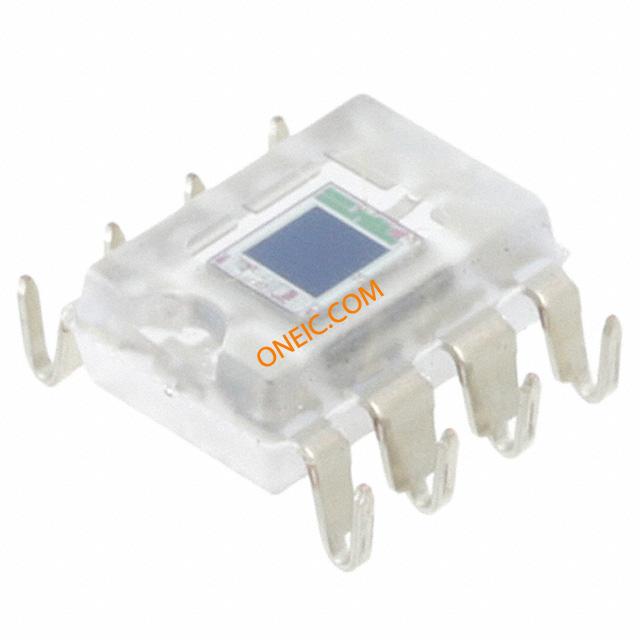

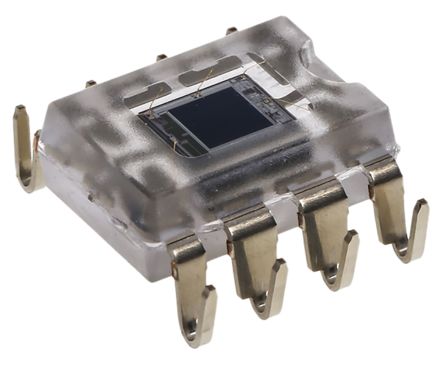

+OPT101P-J
| Manufacturer | |
| Description | Photodetector 0.014MHz 8-Pin SOP Tube Optical Sensors - Light To Frequency & Light To Voltage Mon Photodiode & Sgl Supply Transimp Amp IC AMP MONOLTHC/PHOTOD 8-SOP Light To Frequency & Light To Voltage Mon Photodiode & Sgl Supply Transimp Amp Monolithic Photodiode and Single-Supply Transimpedance Amplifier Texas Instruments 650nm 红外 光探测器放大器, 表面安装 SOP 封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Light to Voltage Converters | Other Names | OPT101PJ |
| Product Category | Optical Sensors - Light To Frequency & Light To Voltage | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| Sensor | No | Response | 7.5mV |
| Fall Time | 28000 ns | Interface | Voltage |
| Wavelength | 650nm | Output Type | Analog |
| Range deg/s | NA | Sensitivity | 850 |
| Spectral Range | 红外 | Voltage Rating | 2.7 |
| Frequency - Max | 14 kHz | Rise Time (Typ) | 28000 ns |
| Current - Output | 120 uA | Voltage - Supply | 2.7 to 36 V |
| Responsivity @ nm | 0.45A/W | Wavelength - Peak | 650 nm |
| Response Frequency | 0.014 | Proximity Detection | No |
| Current - Dark (Typ) | 2.5pA | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 2.7 V | Current - Quiescent (Iq) | 120 |
Mechanical
| Width | 6.52mm | Height | 3.24mm |
| Length | 9.52mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | Through Hole | Package / Case | 8SOP |
| Package Cooled | SOP | Length - Overall | 9.52 |
| Package Quantity | SOP | Size / Dimension | 9.52 x 6.52 x 3.24mm |
| Number of Positions | 8 | Shell Size - Insert | 3.24 |
| Supplier Device Package | 8-SOP | ||
Product Info
| Series | OPT101 | Software | SBBS002B |
| Functional Diagram | fbd_sbbs002b.gif | Utilized IC / Part | View |
| Output Configuration | Surface Mount | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | + 70 C | Operating Temperature - Junction | 70C |
