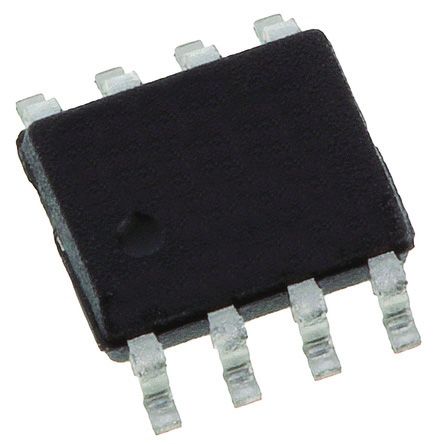

OPA683ID
| Manufacturer | |
| Description | OP Amp Single Current Fdbk ±6V/12V 8-Pin SOIC Tube High Speed Operational Amplifiers Very Lo-Pwr Current Feedback IC OPAMP CFA 1.44GHZ 8SOIC Very Low Power Current Feedback Amplifier with Disable Texas Instruments 电流反馈 运算放大器, 5 V, 8针 SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Current Feedback Amplifier | Other Names | 296-12854-5 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| Gain | 1 | PSRR | 65 dB |
| Frequency | 4.4nV/√Hz | Slew Rate | 210@5V V/us |
| Power - Input | 双，单 | Settling Time | 12 |
| Vn at Flatband | 4.4 | Conversion Type | 210V/µs |
| CMRR, PSRR (Typ) | 51 dB | Current - Output | 1.03 mA |
| Current - Supply | 790 uA | Voltage - Supply | 2.8 V |
| Power Supply Type | Single|Dual | Number of Channels | 1 |
| Number of Elements | 1 | Current - Input Bias | 3µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 12 |
| Voltage - Input (Min) | 3.5 mV | Gain Bandwidth Product | 1.44GHz |
| Rail-to-Rail Operation | No | Current - Quiescent (Iq) | 1.03 |
| Current - Input Bias (Max) | 4@5V uA | Current - Output / Channel | 150mA |
| Voltage - Supply (Vcc/Vdd) | 12 | Input Noise Current Density | 11.6@5V pA/rtHz |
| Input Noise Voltage Density | 4.4@5V nV/rtHz | Voltage - Input Offset (Max) | 3@5V mV |
| Voltage - Supply, Dual (V+/-) | ±5V | Common Mode Transient Immunity (Min) | 51 dB |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Bandwidth | 200 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 200MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Size / Dimension | 4.9 x 3.91 x 1.58mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Current Feedback Amplifier | Series | OPA683 |
| Shutdown | No | Software | SBOS221E |
| Topology | Current Feedback | Technology | BiCOM |
| Architecture | Current Feedback | Manufacturer | High Speed Amplifier |
| Amplifier Type | Current Feedback | Number of Circuits | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
