OPA4277PA
| Manufacturer | |
| Description | OP Amp Quad GP ±18V 14-Pin PDIP Tube IC OPAMP GP 1MHZ 14DIP Operational Amplifiers - Op Amps High Precision Oper Amplifier OP Amp Quad GP ?18V 14-Pin PDIP Tube OP AMP, QUAD HIGH PRECISION, 4277 Operational amplifier; 1MHz; 2÷18VDC; Channels:4; DIP14 High Precision Operational Amplifiers Operational Amplifier Quad 1 MHz DIL-14, OPA4277, OPA4277PA, Texas Instruments Texas Instruments 四路 运算放大器, 1MHz, 14针 PDIP Precision Amplifiers High Precision Oper Amplifier |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Operational Amplifiers - Op Amps | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :4277 | Rad Hardened | No |
Electrical
| Gain | 140 dB | Slew Rate | 0.8@±15V V/us |
| Vn at 1kHz | 8 | Output Type | No |
| Offset Drift | 0.15 | Power - Input | Dual |
| Rise Time (Typ) | 800mV/μs | Transistor Type | :Precision |
| CMRR, PSRR (Typ) | 115 dB | Current - Output | 790µA |
| Voltage - Supply | ±2 V | Power Supply Type | Dual |
| Number of Channels | 4 | Number of Elements | 4 |
| Current - Input Bias | 500pA | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | :4 | Voltage - Input (Min) | 20µV |
| Gain Bandwidth Product | 1 MHz | Rail-to-Rail Operation | No |
| Current - Quiescent (Iq) | 0.825 | Current - Input Bias (Max) | 0.0028@±15V uA |
| Current - Output / Channel | 35mA | Input Offset Current (Max) | 0.0028@±15V |
| Voltage - Supply (Vcc/Vdd) | 36 | Vos (Offset Voltage @ 25C) | 0.05 |
| Input Noise Current Density | 0.2@±15V pA/rtHz | Input Noise Voltage Density | 12@±15V nV/rtHz |
| Frequency Bands (Low / High) | 1MHz | Voltage - Input Offset (Max) | 0.05@±15V mV |
| Voltage - Output Difference (Typ) @ Distance | 140 dB | ||
Mechanical
| Width | 6.6(Max) | Weight | 0.016667 |
| Bandwidth | :1MHz | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :14 |
| Package / Case | 14PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 19.69(Max) |
| Package Quantity | PDIP | Number of Positions | 14 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 14-PDIP |
Product Info
| Spg | 25 | Type | General Purpose Amplifier |
| Series | OPA4277 | Shutdown | No |
| Software | SBOS079B | Base Unit | :4277 |
| Technology | Bipolar | Manufacturer | Low Offset Voltage Amplifier |
| Amplifier Type | General Purpose | Number of Units | 1 |
| Functional Diagram | fbd_sbos079b.gif | Number of Circuits | 4 |
| Utilized IC / Part | View | Other Specifications | :Ultra-Precision |
| Printed Circuit Board | 14 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
Similar Parts

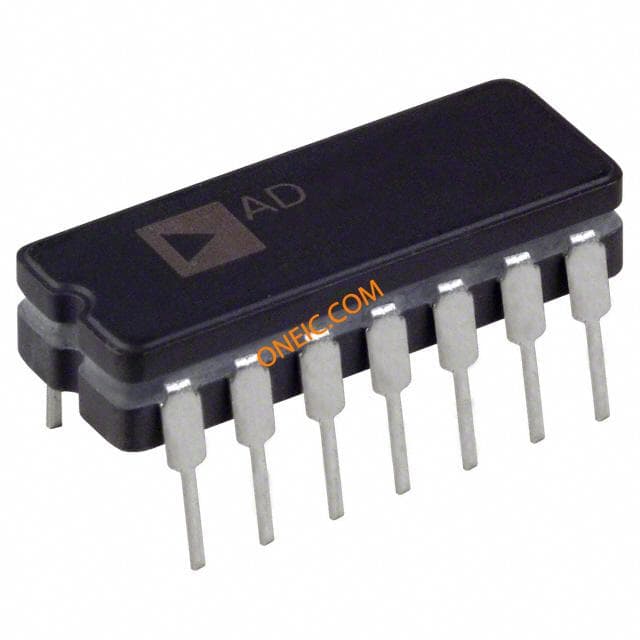

OP400EY
