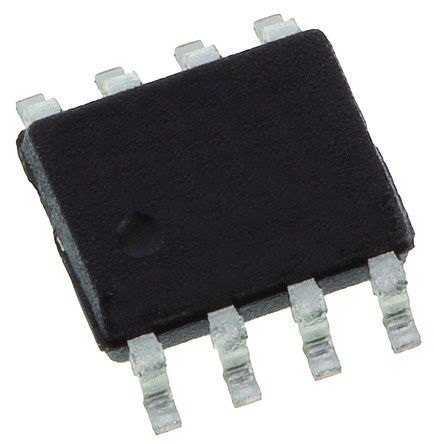

OPA2822U
| Manufacturer | |
| Description | OP Amp Dual Volt Fdbk ±6.3V/12.6V 8-Pin SOIC Tube IC OPAMP VFB 240MHZ 8SOIC High Speed Operational Amplifiers SpeedPlus Dual Wide band Low-Noise OP Amp Dual Volt Fdbk �6.3V/12.6V 8-Pin SOIC Tube SpeedPlus Dual Wideband, Low-Noise Operational Amplifier Texas Instruments 双 运算放大器, 200MHz, 5 V, 8针 SOIC |
| Category |
Business
| Product | Voltage Feedback Amplifier | Other Names | 296-9623-5 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 90 dB | PSRR | 90 dB |
| Frequency | 2.1nV/√Hz | Slew Rate | 120@5V V/us |
| Output Type | No | Power - Input | Single/Dual |
| Settling Time | 32 ns | Vn at Flatband | 2 |
| Conversion Type | 120V/µs | CMRR, PSRR (Typ) | 85 dB |
| Current - Output | 9.6mA | Current - Supply | 9.6 mA |
| Voltage - Supply | 12.6 V | Power Supply Type | Single|Dual |
| Number of Channels | 2 | Number of Elements | 2 |
| Current - Input Bias | 9µA | Current Rating (Max) | Catalog |
| Offset Voltage Drift | 5 | Typical Voltage Gain | 90 dB |
| Voltage - Input (Min) | 200µV | Gain Bandwidth Product | 200 MHz |
| Rail-to-Rail Operation | No | Current - Quiescent (Iq) | 6.3 |
| Current - Input Bias (Max) | 16@5V uA | Current - Output / Channel | 150mA |
| Input Offset Current (Max) | 0.4@5V | Voltage - Supply (Vcc/Vdd) | 12 |
| Input Noise Current Density | 1.5@5V pA/rtHz | Input Noise Voltage Density | 2.1@5V nV/rtHz |
| Voltage - Supply Span (Typ) | �6 V | Voltage - Input Offset (Max) | 1.3@5V mV |
| Voltage - Supply, Dual (V+/-) | ±6V | Voltage - Output Difference (Typ) @ Distance | 90 dB |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Bandwidth | 200 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 400MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Voltage Feedback Amplifier | Series | OPA2822 |
| Shutdown | No | Software | SBOS188E |
| Topology | Voltage Feedback | Technology | BiCOM |
| Architecture | Voltage Feedback | Manufacturer | High Speed Amplifier |
| Amplifier Type | Voltage Feedback | Number of Circuits | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
