MSP430F2617TPMR
| Manufacturer | |
| Description | MCU 16-bit MSP430 RISC 92KB Flash 2.5V/3.3V 64-Pin LQFP T/R MCU 16-bit MSP430 MSP430 RISC 92KB Flash 2.5V/3.3V 64-Pin LQFP T/R IC MCU 16BIT 92KB FLASH 64LQFP 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr MCU IC, 16BIT MCU, MSP430F2, 16MHZ, 64-LQFP MCU, 16BIT, MSP430, 16MHZ, LQFP-64 16-Bit Ultra-Low-Power MCU, 92KB Flash, 8KB RAM, 12-Bit ADC, Dual DAC, 2 USCI, HW Mult, DMA |
| Category |
Business
| Tradename | MSP430 | Other Names | 296-22695-2 |
| Product Category | 16-bit Microcontrollers - MCU | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | No | Security Features | N/A |
Electrical
| GPIO | 48 | Speed | 16 MHz |
| Memory | 3 | RAM Size | 8 KB |
| Core Size | 16-Bit | Core Type | MSP430 |
| Frequency | 16 MHz | Interface | I2C/SCI/SPI/UART |
| Clock Rate | 16 MHz | Comparator | Yes |
| Delay Time | 1 | Memory Size | 8 KB |
| Number of I/O | 64 | Counter/Timers | 2 |
| Number of Bits | 12 | Voltage Rating | 1.8 |
| Watchdog Timer | 1 | Clock Frequency | :16MHz |
| Data Converters | A/D 8x12b, D/A 2x12b | Frequency - Max | 16 MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 2.5|3.3 V |
| Number of Channels | 8 | Analog Input:Output | ADC12 - 8ch |
| Non-Volatile Memory | 92 | Program Memory Size | 92 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Input (Min) | 3.6 | Voltage - Supply (Min) | 1.8 V |
| Power - Average Forward | 0.5 | Number of Bits per Element | 12 |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
Mechanical
| Width | 10.2(Max) | Weight | 0.012088 oz |
| Packaging | Tape & Reel (TR) | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :64 | Package / Case | 64LQFP |
| Package Cooled | LQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10.2(Max) | Package Quantity | LQFP |
| Number of Positions | 64 | Shell Size - Insert | 1.45(Max) |
| Number of Cores/Bus Width | 16 Bit | ||
Product Info
| SPI | 4 | Series | 2 Series |
| Features | Watchdog Temp Sensor Brown Out Reset | Protocol | 2 |
| Software | SLAS541K | Bootloader | UART |
| Multiplier | 16x16 | On-Chip RAM | 8-chx12-bit |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Special I/O | N/A |
| Architecture | RISC | Connectivity | I²C, IrDA, LIN, SCI, SPI, UART/USART |
| Programmable | Yes | Pattern Number | Y |
| Number of Timers | 2 | Controller Series | :MSP430F2xx |
| Functional Diagram | fbd_slas541k.gif | RF Family/Standard | MSP430 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 64 | ||
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Similar Parts
TPS7A4001DGNT
texas instruments
LDO Regulator Pos 1.161V to 90V 0.05A 8-Pin HTSSOP EP T/R LDO Regulator Pos 1.161V to 90V 0.05A 8-Pin HVSSOP EP T/R IC REG LDO ADJ 50MA 8MSOP LDO Voltage Regulators 50mA,100Vin,Sgl Out put LDO Linear Reg LDO, ADJ, 50MA, 8MSOP 100V Input, 50mA, Single Output Low-Dropout Linear Regulator Logic IC MSOP-8 Power PAD, TPS7A4001, TPS7A4001DGNT, Texas Instruments Texas Instruments TPS7A40 系列 线性稳压器, 1.175 → 90 V ±2.5% 可调 /50mA, 1.83W, 8针 MSOP
OP07CDR
texas instruments
OP Amp Single GP ±18V 8-Pin SOIC T/R IC OPAMP GP 600KHZ 8SOIC Operational Amplifiers - Op Amps Low Offset Volt Prec OP Amp Single GP �18V 8-Pin SOIC T/R IC, OP-AMP, 600KHZ, 0.3V/ us, SOIC-8 Low-Offset Voltage Operational Amplifier Texas Instruments OP07CD 运算放大器, 600kHz, 8针 SOIC Precision Amplifiers Low Offset Volt Prec
MSP-FET430U64A
texas instruments
Target Board And USB Programmer Emulators / Simulators MSP430 64P Socket Target Board KIT MSP 430/PROGRAMMER 64PIN MSP-FET430U64A, Development Kit, 16 bit, MSP430 USB PROGRAMMER, W/ MSP430 TARGET BOARD, 64 PIN Texas Instruments 16 位 MCU 处理器和微控制器开发套件
MSP-GANG
texas instruments
MSP-GANG Development Software IN-SYSTEM GANG PROGRAMMER MSP GANG PRODUCTION PROGRAMMER TOOL IN-SYSTEM GANG PROGRAMMER GANG PROGRAMMER, FOR MSP430 , 内存编译器 量产编程器, 串行 RS-232，UART，USB接口, 使用于MSP430 闪存设备
MSP-FET430PIF
texas instruments
MSP430 Parallel Port Debugging Interface Sockets & Adapters MSP430 Para Port Debug Interf INTERFACE DEBUG FOR MSP430 FET MSP-FET430PIF, Development Kit, MSP430, CD with Software Emulators / Simulators MSP430 Para Port Debug Interf DEBUGGING INTERFACE, FOR MSP430 FET Texas Instruments 处理器和微控制器开发套件
MSP-TS430PM64
texas instruments
Target Socket Module This Is The PCB On Which Is Mounted A 64Pin Zif Socket Sockets & Adapters 64Pin Socket Target Brd TARGET BOARD ZIF 64SKT MSP430 MSP430, ZIF SOCKET, 64 PIN, JTAG, TARGET , 芯片编程适配器 64 引脚 ZIF 插座板

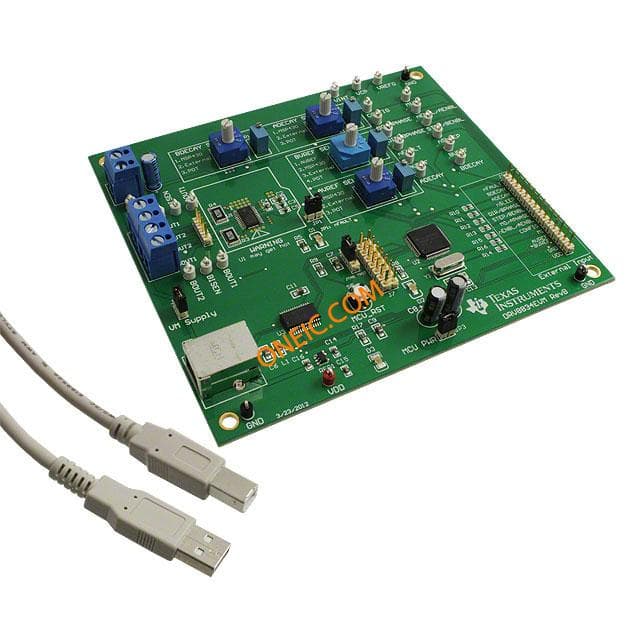

DRV8834EVM
