MSP430F2252TRHAT
| Manufacturer | |
| Description | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 40-Pin VQFN EP T/R 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr Microcontroller IC MCU 16BIT 16KB FLASH 40VQFN MCU 16-bit MSP430 MSP430 RISC 16KB Flash 2.5V/3.3V 40-Pin VQFN EP T/R MCU, 16BIT, 16K FLASH, 512B RAM, QFN40 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 512B RAM |
| Category |
Business
| Tradename | MSP430 | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | No | Security Features | N/A |
Electrical
| GPIO | 32 | Speed | 16 MHz |
| Memory | 0 | RAM Size | 512 byte |
| Core Size | 16-Bit | Core Type | MSP430 |
| Frequency | 16 MHz | Interface | I2C/SCI/SPI |
| Clock Rate | 16 MHz | Comparator | 0 |
| Delay Time | 1 | Memory Size | 512 B |
| Memory Type | :Flash | Number of I/O | 32 |
| Counter/Timers | 2 | Number of Bits | 10 |
| Voltage Rating | 1.8 | Watchdog Timer | 1 |
| Clock Frequency | :16MHz | Data Converters | A/D 12x10b |
| Number of DAC's | :3 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 2.5|3.3 V |
| Number of Channels | 12 | Analog Input:Output | ADC10 - 12ch |
| Non-Volatile Memory | 16 | Program Memory Size | 16 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 12 |
| Voltage - Input (Min) | 3.6 | Voltage - Supply (Min) | 1.8 V |
| Power - Average Forward | 0.7 | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
Mechanical
| Width | 6.15(Max) | Weight | 0.003668 oz |
| Packaging | Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :40 |
| Package / Case | 40VQFN EP | Package Cooled | VQFN EP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 6.15(Max) |
| Package Quantity | VQFN EP | Number of Positions | 40 |
| Shell Size - Insert | 0.95(Max) | Number of Cores/Bus Width | 16 Bit |
Product Info
| SPI | 2 | Series | 2 Series |
| Features | Watchdog Temp Sensor Brown Out Reset | Protocol | 1 |
| Software | SLAS504G | Bootloader | UART |
| Flash Size | :16KB | Multiplier | N/A |
| On-Chip RAM | 12-chx10-bit | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Special I/O | N/A | Architecture | RISC |
| Connectivity | I²C, IrDA, LIN, SCI, SPI, UART/USART | Programmable | Yes |
| Pattern Number | Y | Number of Timers | 2 |
| Controller Series | :MSP430F2xx | Functional Diagram | fbd_slas504g.gif |
| RF Family/Standard | MSP430 | Utilized IC / Part | View |
| DigiKey Programmable | Yes | Printed Circuit Board | 40 |
| Number of A/D Converters | :12 | ||
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Similar Parts
TPS2062D
texas instruments
USB Power SW Hi Side/DIST Dual 5.5V 1.5A 8-Pin SOIC Tube Power Switch ICs - USB Dual 1A Current-Limited IC SWITCH PWR DIST DUAL 8-SOIC IC, POWER DIS SWITCH, DUAL, 1A IC, POWER DISTRIBUTION SWTCH Dual 1A Current-Limited, Power-Distribution Switches , 四 USB 电源开关, 高侧, 70mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution Dual 1A Current-Limited
%2CTO-226_straightlead.jpg&w=3840&q=75)
MCP111-195I/TO
Microchip Technology Inc.
. MCP111-195I/TO - Supervisor Open Drain or Open Collector 1 Channel TO-92-3 from Microchip Technology. from now!
CC2500-RTY1
texas instruments

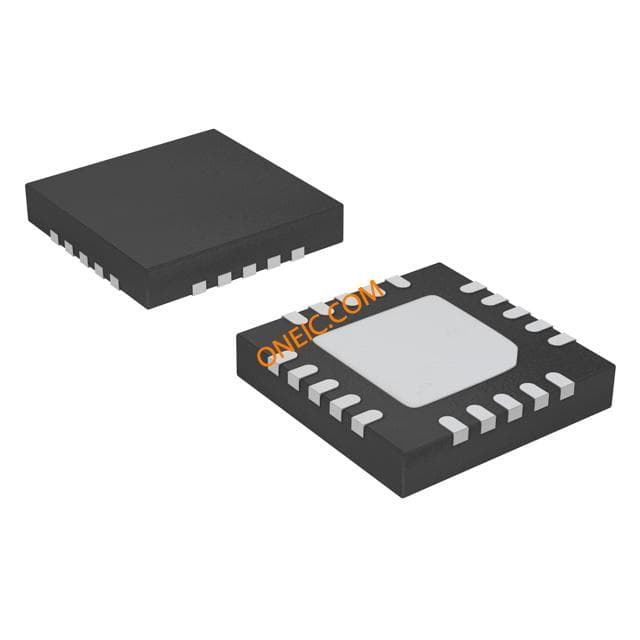

RF Transceiver FSK/MSK/OOK 2.5V/3.3V 20-Pin VQFN EP Tube RF Transceiver S-Chip Lo POW RF IC RF TXRX SNGL-CHIP LP 20-QFN CC2500-RTY1, RF Transceiver 2400 to 2483.5MHz, FSK, MSK, OOK, 1.8 to 3.6V 20-Pin QLP EP, VQFN EP RF TRANSCEIVER, SMD, QFN-20, 2500 Low Cost, Low-Power 2.4 GHz RF Transceiver Designed for Low-Power Wireless Apps in the 2.4 GHz ISM B
