LMZ12003EVAL/NOPB
| Manufacturer | |
| Description | Simple Switcher Power Module Evaluation Board Is Optimized For Peak Performance And Increased Flexibility Power Management IC Development Tools LMZ12003 EVAL BOARD BOARD EVAL PWR MODULE LMZ12003 LMZ12003EVAL/NOPB, Development Kit, Power Module Evaluation Board EVAL BOARD, LMZ12003 1.8V, 3A REGULATOR Texas Instruments 模拟开发套件 |
| Category |
Business
| Product | Evaluation Boards | Product Category | Power Management IC Development Tools |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | ||
Electrical
| Voltage Rating | 4.5 V to 20 V | Current - Output | 3 A |
| Number of Elements | :LMZ12003 | Regulator Topology | Buck |
| Frequency - Switching | Up to 1MHz | Voltage - Input (Min) | 1.8V |
Mechanical
| Weight | 0 | Board Thickness | Fully Populated |
| Size / Dimension | 77 mm x 43.3 mm | ||
Product Info
| Type | Development Kit | Contents | Board |
| Features | :Integrated shielded inductor within the switcher | Function | The SIMPLE SWITCHER power module evaluation board is optimized for peak performance and increased flexibility |
| Kit Type | :Power Management | Technology | Power Management |
| Kit Contents | Power Module Evaluation Board | Main Purpose | DC/DC, Step Down |
| Card Standard | Development Kit | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | LMZ12003 | RF Family/Standard | LMZ12003 |
| Utilized IC / Part | LMZ12003 | ||
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | + 80 C |
Documents & Media
Similar Parts

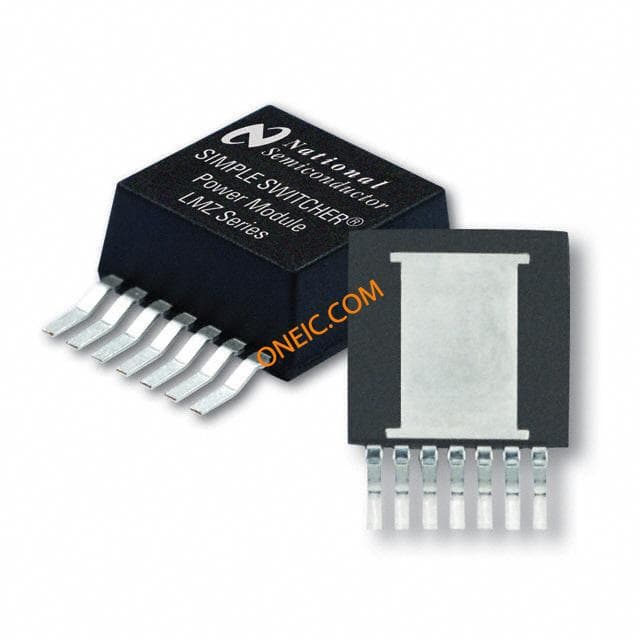

LMZ12003TZ-ADJ/NOPB
Texas Instruments Incorporated
. LMZ12003TZ-ADJ/NOPB - Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 3A 4.5V - 20V Input from Texas Instruments. from now!
LMZ12003TZX-ADJ/NOPB
Texas Instruments
DC/DC Switching Converters 3A Pwr Mod w/ 20V Max Input Vtg Module DC-DC 1-OUT 0.8V to 6V 3A 7-Pin TO-PMOD IC BUCK SYNC ADJ 3A TO-PMOD-7 Voltage Regulators - Switching Regulators 3A Pwr Mod w/ 20V Max Input Vtg IC, POWER MODULE, TO-PMOD-7 3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage Switching Voltage Regulators 3A Pwr Mod w/ 20V Max Input Vtg
LMZ12003TZE-ADJ/NOPB
texas instruments
Power Module 7-Pin TO-PMOD Rail DC/DC Switching Converters DC/DC Switching Converters 1A Pwr Mod W/ 20V Max Input Vtg Module DC-DC 1-OUT 0.8V to 6V 3A 7-Pin TO-PMOD EP IC BUCK SYNC ADJ 3A TO-PMOD-7 LMZ12003TZE-ADJ/NOPB, Switching Regulator, Buck Controller, 3A, Adjustable, 0.8 to 6V, 400kHz, 7-Pin TO-PMOD Voltage Regulators - Switching Regulators 1A Pwr Mod W/ 20V Max Input Vtg DC-DC CONV, BUCK, 1MHZ, TO-PMOD-7 3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage Switching Regulator 3 A TO-PMOD-7, LMZ12003TZE-ADJ/NOPB, Texas Instruments Texas Instruments 降压 开关稳压器, 3A, 可调输出, 0.8 → 6 V, 400 kHz, 7针 TO-PMOD封装 Switching Voltage Regulators 1A Pwr Mod W/ 20V Max Input Vtg
