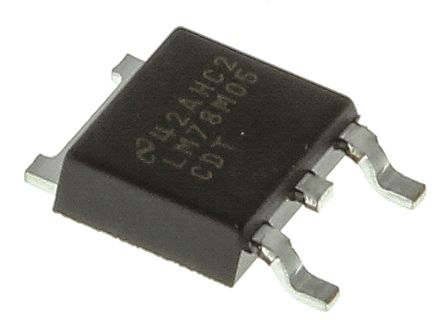

LM78M05CDT/NOPB
| Manufacturer | |
| Description | Standard Regulator Pos 5V 0.5A 3-Pin(2+Tab) TO-252 Rail IC REG LDO 5V 0.5A TO252-3 LM78M05CDT/NOPB, Voltage Regulator, 0.5A 5V, 3-Pin TO-252 Voltage Regulators - Standard 3-Terminal Pos Vltg Reg LDO Regulator Pos 5V 0.5A 3-Pin(2+Tab) TO-252 Rail IC, V REG, LINEAR, 5V 3-Terminal Positive Voltage Regulators Linear voltage regulator 5 V TO-252-3, LM78M05, LM78M05CDT/NOPB, Texas Instruments Texas Instruments LM78Mxx 系列 线性稳压器, 5 V /500mA, 3针 TO-252 Linear Voltage Regulators 3-Terminal Pos Vltg Reg |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85411000 | Part Status | ACTIVE |
| Rad Hardened | No | High Reliability | Y |
Electrical
| PSRR | 78 dB | Output | 1 |
| Output Type | Fixed | Regulator Type | Standard |
| Voltage Rating | 7.2 V | Line Regulation | 100 mV |
| Load Regulation | 100 mV | Current - Output | 0.5(Min) A |
| Voltage - Supply | :35V | Number of Outputs | 1 |
| Regulator Topology | Positive Fixed | Current Rating (Max) | Military |
| Number of Regulators | 1 | Voltage - Input (Min) | 5V |
| Voltage - Output (Max) | :5V | Current - Quiescent (Iq) | 4mA |
| DC Voltage - Input (Min) | 7.2 V | Current - Quiescent (Max) | 10 mA |
| Voltage - Continuous Operating (Max) (MCOV) | :35V | ||
Mechanical
| Width | 6.1mm | Height | 2.3mm |
| Length | 6.58mm | Weight | 0.0001 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3TO-252 |
| Package Cooled | TO-252 | Material Finish | :MSL 2 - 1 year |
| Package Quantity | 75 | TUBE | Size / Dimension | 6.58 x 6.1 x 2.3mm |
| Number of Positions | 3 | Supplier Device Package | TO-252-3 |
Product Info
| Type | Linear | Series | LM78M05 |
| Features | Overcurrent Protection Thermal Shutdown | Polarity | Positive |
| Software | SNVS090E | Outputs and Type | Fixed Output |
| Utilized IC / Part | View | Output Configuration | 5 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
