LM5576MH/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20TSSOP LM5576MH/NOPB, Switching Regulator,, Buck Controller 3A, Adjustable, 500kHz, 20-Pin TSSOP EP Voltage Regulators - Switching Regulators 75V,3A STEP-DOWN SWITCHING REG IC, STEP-DOWN REGULATOR, 20-ETSSOP SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization Switching Regulator 3 A TSSOP-20EP, LM5576, LM5576MH/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 3A, 可调输出, 500 kHz, 20针 TSSOP封装 Switching Voltage Regulators 75V,3A STEP-DOWN SWITCHING REG |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 73 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85359000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | PWM Type | Current Mode |
| Duty Cycle | 95 | Efficiency | 90 % |
| Output Type | Adjustable | Regulator Type | Buck Controller, Inverting |
| Voltage Rating | 1.225 to 70 V | Delay Time - ON | Adjustable |
| Current - Output | 3 A | Voltage - Supply | 6 to 75 V |
| Number of Outputs | 1 | Regulator Topology | Inverting/Step Down |
| Current - Switching | 4.2 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Must Release Voltage | Adjustable |
| Frequency - Switching | 50 to 500 kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.23 V ~ 70 V | Current - Quiescent (Iq) | 1 |
| DC Voltage - Input (Min) | 6 V | Voltage Regulation - Load | External |
| Accuracy - Voltmeter; Ammeter | 1.5 | ||
Mechanical
| Width | 4.4mm | Height | 0.9mm |
| Length | 6.5mm | Weight | 0.002 |
| Packaging | Rail | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :20 | Package / Case | 20HTSSOP EP |
| Package Cooled | TSSOP EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 6.6(Max) | Package Quantity | HTSSOP EP |
| Size / Dimension | 6.5 x 4.4 x 0.9mm | Number of Positions | 20 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 20-HTSSOP |
Product Info
| Type | Inverting|Step Down | Series | LM5576 |
| Features | Enable Tracking | Software | SNVS447J |
| Topology | Buck | Application | Industrial |
| Manufacturer | SIMPLE SWITCHER | Control Method | Current Mode |
| Pattern Number | Y | Functional Diagram | fbd_snvs447j.gif |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
LM2931CM/NOPB
texas instruments
LDO Regulator Pos 3V to 24V 0.1A 8-Pin SOIC N Rail IC REG LDO ADJ 0.1A 8SOIC LM2931CM/NOPB, Low Dropout Voltage Regulator, Adjustable 0.1A, 3 to 24V, 8-Pin, SOIC LDO Voltage Regulators Series LDO Regs LDO Regulator Pos 3V to 24V 0.1A 8-Pin SOIC Rail IC, ADJ LDO REG, 3V TO 24V, 0.1A, 8-SOIC Voltage stabiliser; adjustable; 3÷24V; 100mA; SMD; SO8 Series Low Dropout Regulators LDO voltage regulator 3...24 V SOIC-8, LM2931, LM2931CM/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 可调整的输出, 100mA, 3 → 24 V输出, 8针 SOIC封装
LM324AM/NOPB
texas instruments
OP Amp Quad GP ±16V/32V 14-Pin SOIC N Rail IC OPAMP GP 1MHZ 14SOIC LM324AM/NOPB, Quad Operational Amplifier 1MHz 5 to 28V, 14-Pin SOIC Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP OP Amp Quad GP ?16V/32V 14-Pin SOIC Rail Operational amplifier; 1MHz; 3÷32VDC; SO14 Low Power Quad Operational Amplifier Operational Amplifier Quad 1 MHz SO-14, LM324, LM324AM/NOPB, Texas Instruments Texas Instruments 四路 运算放大器, 1MHz, 5 → 28 V, 14针 SOIC
TPS54260DRCT
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin VSON EP T/R IC REG BUCK ADJ 2.5A 10SON Voltage Regulators - Switching Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT BUCK, 60VIN, 2.5MHZ, 2.5A, ADJ, 10SON 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 0.8 → 58 V, 2.5 MHz, 10针 SON封装 Switching Voltage Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT
LM5576BLDT/NOPB
Texas Instruments Incorporated

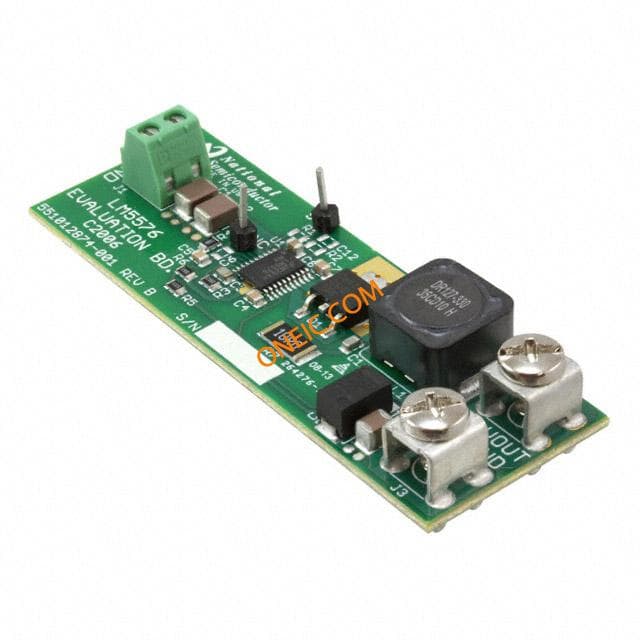

. LM5576BLDT/NOPB - LM5576 SIMPLE SWITCHER®, WEBENCH® 1 Non-Isolated Output DC/DC, Step Down Evaluation Board from Texas Instruments. from now!
