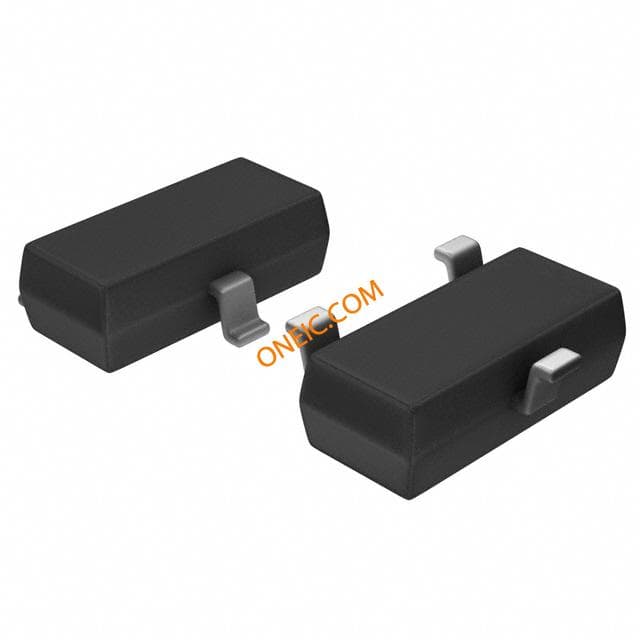

LM50BIM3
| Manufacturer | |
| Description | Temp Sensor Analog 3-Pin SOT-23 T/R Temp Sensor Analog(Voltage) 3-Pin SOT-23 T/R IC SENSOR TEMPERATURE SOT23-3 Board Mount Temperature Sensors SOT-23 Single-Supply Centigrade Temperature Sensor 3-SOT-23 -25 to 100 TEMPERATURE SENSOR, SMD, SOT-23-3 ±2°C Analog Output Temperature Sensor |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-35218-1 | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85235290 | Part Status | :50 |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±2(Max) °C | Interface | Analog Output |
| Output Type | Analog | Sensor Type | :SOT-23 |
| Sensing Range | :-40°C to +125°C | Voltage Rating | :12.6V |
| Current - Output | :130µA | Voltage - Supply | 4.5 to 10 V |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | :10mV/°C |
| Voltage - Supply (Min) | 4.5 V | Current Transfer Ratio (Min) | 10.3(Max) mV/°C |
Mechanical
| Width | 1.4(Max) | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Contact Timing | :± 2°C |
| Number of Pins | :3 | Package / Case | 3SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.04(Max) | Package Quantity | SOT-23 |
| Number of Positions | 3 | Shell Size - Insert | 1.02(Max) |
| Supplier Device Package | SOT-23-3 | ||
Product Info
| Series | LM50 | Features | UL Recognized |
| Function | Temp Sensor | Software | SNIS118E |
| Base Unit | :50 | Replacement | LM50BIM3/NOPB |
| Functional Diagram | alt_snis118e.gif | Utilized IC / Part | View |
| Printed Circuit Board | 3 | ||
Environmental
| Temperature - Test | -40 to 150 | Sensing Temperature | -25°C ~ 100°C |
| Operating Temperature | Commercial | Maximum Temperature Limit | :125°C |
| Sensing Temperature - Local | :-40°C | Temperature Coefficient (Typ) | 2 |
| Operating Temperature - Junction | 100C | ||
