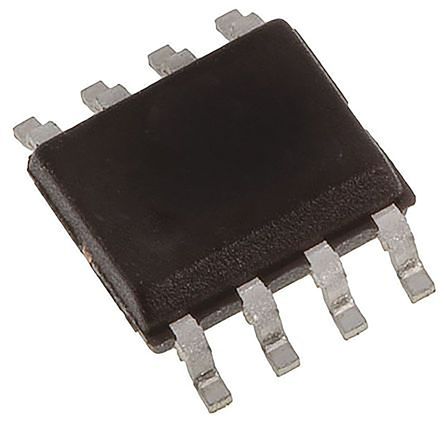

LM5002MA/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Step Up 3.1V to 75V 8-Pin SOIC N Rail Conv DC-DC Single Step Up 3.1V to 75V 8-Pin SOIC Rail IC REG MULTI CONFIG 0.5A 8-SOIC LM5002MA/NOPB, Boost Converter, Step Up Adjustable, 1500kHz, 8-Pin SOIC Voltage Regulators - Switching Regulators Hi Vtg Switch Mode Reg 3.1-75V Wide Vin, 0.5A Current Mode Non-Synchronous Switch Mode Regulator Texas Instruments 升压转换器, 可调输出, 1500 kHz, 8针 SOIC封装 Switching Voltage Regulators Hi Vtg Switch Mode Reg |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LM5002MANOPB | Standard Package | Rail / Tube |
| Factory Pack Quantity | 95 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | PWM Type | Current Mode |
| Duty Cycle | 85 | Efficiency | 96 % |
| Output Type | Adjustable | Regulator Type | Step Up |
| Voltage Rating | 3.1 V | Current - Output | 500mA |
| Current - Supply | 3.1 mA | Voltage - Supply | 3.1 to 75 V |
| Number of Outputs | 1 | Regulator Topology | Step Up |
| Current - Switching | 0.4 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Must Release Voltage | Adjustable |
| Frequency - Switching | 50 to 1500 kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.26 V ~ 75 V | Current - Quiescent (Iq) | 3.1 |
| DC Voltage - Input (Min) | 3.1 V | Current - Off State (Max) | 95 |
Mechanical
| Width | 3.9mm | Height | 1.45mm |
| Length | 4.9mm | Packaging | Rail |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Size / Dimension | 4.9 x 3.9 x 1.45mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Step Up | Series | LM5002 |
| Features | Enable Frequency Synchronization | Function | Y |
| Software | SNVS496D | Topology | Boost, forward, flyback |
| Pattern Number | Y | Functional Diagram | fbd_snvs496d.gif |
| Utilized IC / Part | View | Function - Lighting | 上升 |
| Printed Circuit Board | 8 | ||
