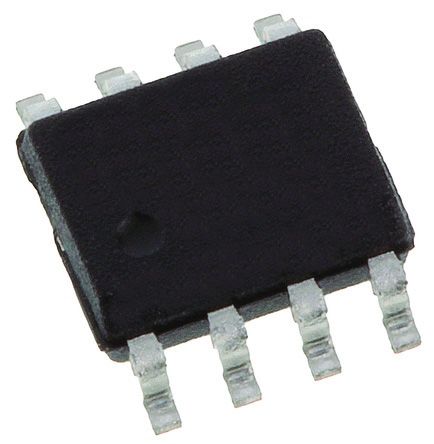

LM4140BCM-2.5/NOPB
| Manufacturer | |
| Description | V-Ref Precision 2.5V 8mA 8-Pin SOIC N Rail V-Ref Precision 2.5V 8mA 8-Pin SOIC Rail IC VREF SERIES PREC 2.5V 8-SOIC LM4140BCM-2.5/NOPB, Voltage Reference 2.5V, 0.1% 8mA 5.6V Max. 8-Pin SOIC Voltage References Precision Micropower Low Dropout Voltage Reference Texas Instruments Fixed 2.5V 电压参考, ±0.1 %精确度, 8mA, 5.6 V输入, 8针 SOIC封装 Voltage References Precision Micropower Low Dropout Voltage Reference 8-SOIC 0 to 70 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Other Names | LM4140BCM25NOPB |
| Standard Package | Rail / Tube | Factory Pack Quantity | 95 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | 5 PPM/mA | Tolerance | ±0.1% |
| Reference Type | Precision | Voltage Rating | 2.5 V |
| Line Regulation | 50(Typ) ppm/V | Load Regulation | 5(Typ) ppm/mA |
| Current - Output | 8 mA | Current - Supply | 230 uA, 265 uA |
| Voltage - Supply | 1.024 1.25 2.048 2.5 4.096 | Current - Output 1 | 8 |
| Number of Channels | 1 | Current Rating (Max) | Catalog |
| Contact Voltage (Max) | 5.6 V | Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 2.5 V | Current - Quiescent (Iq) | 320µA |
| Voltage Regulation - Load | 50 ppm/V | Current - Output / Channel | 8 mA |
| Accuracy - Highest (Lowest) | 0.1 % | ||
Mechanical
| Width | 3.9mm | Height | 1.45mm |
| Length | 4.9mm | Packaging | Rail |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Size / Dimension | 4.9 x 3.9 x 1.45mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Series | LM4140 | Software | SNVS053E |
| Topology | Series | Manufacturer | Texas Instruments |
| Programmable | Precision | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
| Temperature Coefficient | 6 ppm/°C | Temperature Coefficient (Typ) | ±0.1 % |
