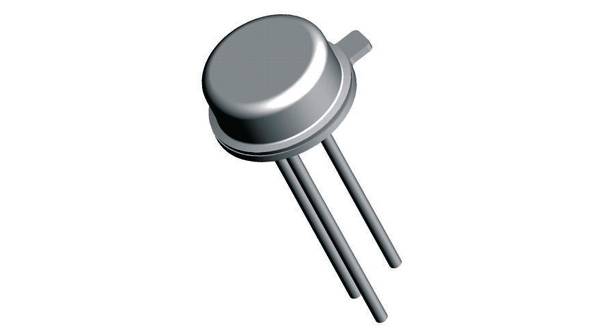

LM35CH/NOPB
| Manufacturer | |
| Description | Temp Sensor Analog Serial (2-Wire) 3-Pin TO-46 Temp Sensor Analog(Voltage) Serial (2-Wire) 3-Pin TO-46 IC SENSOR PREC CENT TEMP TO46-3 Board Mount Temperature Sensors Prec Centigrade Temp Sensor ±0.5°C Temperature Sensor with Analog Output with 30V Capability Temperature sensor TO-46, LM35, LM35CH/NOPB, Texas Instruments |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
| Standard Package Name | TO-206-AB | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
| High Reliability | Y | ||
Electrical
| Output | Analog | Accuracy | ±0.4 °C |
| Interface | Serial (2-Wire) | Tolerance | ±0.4°C |
| Output Type | Analog | Power - Input | 4...30 V |
| Voltage Rating | 4 | Current - Output | 10 mA |
| Voltage - Supply | 4 to 30 V | Current Rating (Max) | Military |
| Voltage - Supply (Min) | 4 V | Current Transfer Ratio (Min) | 10 mV/°C |
Mechanical
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | SMD/SMT | Package / Case | 3TO-46 |
| Package Cooled | TO-46 | Package Quantity | TO-46 |
| Diameter - Outside | 5.56(Max) | Number of Positions | 3 |
| Shell Size - Insert | 2.67(Max) | Supplier Device Package | TO-46-3 |
Product Info
| Series | LM35 | Function | Temp Sensor |
| Software | SNIS159E | Configuration | Local |
| Functional Diagram | fbd_snis159e.gif | Utilized IC / Part | View |
| Printed Circuit Board | 3 | ||
Environmental
| Temperature Range | -40...+110 °C | Temperature - Test | -40 to 110 |
| Sensing Temperature | -40°C ~ 110°C | Operating Temperature | - 40 C |
| Temperature Coefficient | -40°C ~ 110°C | Temperature Coefficient (Typ) | 0.5 |
| Operating Temperature - Junction | 110C | ||
