LM3407MY/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 4.5V to 30V 8-Pin MSOP EP T/R Conv DC-DC Single Step Down 4.5V to 30V 8-Pin HVSSOP EP T/R IC LED DRVR HP CONST CURR 8-MSOP LM3407MY/NOPB, Switching Regulator, Buck Controller, 0.35A, Adjustable, 0.1 to 0.9V, 1000kHz, 8-Pin MSOP, MSOP EP LED Lighting Drivers 350MA,CONST CRNT OUT SWITCHING CONVERTER IC, BUCK REGULATOR, CONST CURRENT, MSOP-8 350 mA, Constant Current Output Floating Buck Switching Converter for High Power LEDs Texas Instruments 降压 开关稳压器, 350mA, 可调输出, 0.1 → 0.9 V, 1000 kHz, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Lighting Drivers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | Dimming | :PWM |
| Frequency | 300kHz ~ 1MHz | Output Type | Adjustable |
| Regulator Type | Buck Controller | Voltage Rating | 0.45 to 27 V |
| Current - Output | 0.35 A | Voltage - Supply | 4.5 V ~ 30 V |
| Number of Outputs | 1 | Voltage Reference | 0.2 |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Frequency - Switching | 300 to 1000 kHz |
| Voltage - Input (Min) | :4.5V | Voltage - Output (Max) | 0.9 V |
| Current - Quiescent (Iq) | 0.78 | DC Voltage - Input (Min) | 4.5 V |
| Constant Current Load - Max | Yes | Voltage - Output (Min/Fixed) | 0.1 V |
| Voltage - Continuous Operating (Max) (MCOV) | :30V | ||
Mechanical
| Width | 3mm | Height | 0.86mm |
| Length | 3mm | Weight | 0.002 |
| Packaging | Tape and Reel | Case Color | :MSOP |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8MSOP EP |
| Package Cooled | MSOP, MSOP EP | Length - Overall | 3.1(Max) |
| Package Quantity | HVSSOP EP | Size / Dimension | 3 x 3 x 0.86mm |
| Number of Positions | 8 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 8-MSOP-EP | ||
Product Info
| Note | Adjustable Switching Frequency | Type | Step Down |
| Series | LM3407 | Features | Adjustable Switch Frequency Enable/Shutdown Thermal Shutdown Integrated Switch |
| Software | SNVS553B | Topology | PWM, Step-Down (Buck) |
| Functional Diagram | fbd_snvs553b.gif | Utilized IC / Part | View |
| Internal Connection | Yes | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Online Document
PDF Document
Online Document
PDF Document
Online Document
Similar Parts
744042220
Wurth Electronics

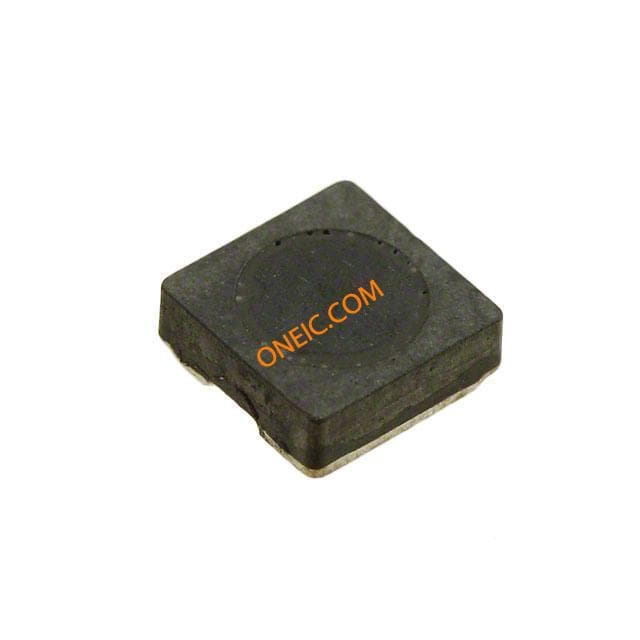

固定インダクタ WE-TPC Inductor 22uH 100kHz 0.88A INDUCTOR POWER 22UH 880MA SMD Inductor SMD WE-TPC 4818 22uH 0.6A Fixed Inductors WE-TPC Inductor 22uH 100kHz 0.88A CHOKE, SMD 22UH, 0.88A Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 22 μH ±30%, 880mA Idc
$4.3486
Details
LM3407EVAL
Texas Instruments

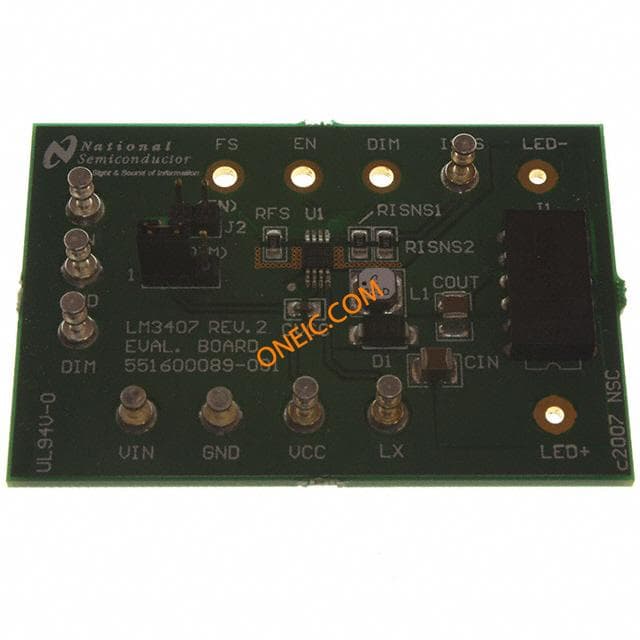

BOARD EVALUATION FOR LM3407 LM3407, LED DRIVER, BUCK, EVAL BOARD
