LM3402HVMMX/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 6V to 75V 8-Pin MSOP T/R IC LED DRVR HP CONST CURR 8VSSOP LED Lighting Drivers Conv DC-DC Single Step Down 6V to 75V 8-Pin VSSOP T/R 0.5A Constant Current Buck Regulator for High Power LED Drivers LED Lighting Drivers 0.5A Constant Current Buck Regulator for High Power LED Drivers 8-VSSOP -40 to 125 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Lighting Drivers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | Dimming | PWM |
| Frequency | 1MHz | Efficiency | 96 % |
| Output Type | Adjustable | Voltage Rating | 0.2 to 40 V |
| Current - Output | 0.5 A | Voltage - Supply | 6 V ~ 75 V |
| Number of Outputs | 1 | Voltage Reference | 0.2 |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Frequency - Switching | 10 to 1000 kHz |
| Voltage - Input (Min) | 73V | Current - Quiescent (Iq) | 0.6 |
| DC Voltage - Input (Min) | 6 V | Constant Current Load - Max | Yes |
Mechanical
| Height | 0.86 mm | Length | 3 mm |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8MSOP |
| Package Cooled | MSOP | Package Quantity | 3500 | LARGE T&R |
| Number of Positions | 8 | Supplier Device Package | 8-VSSOP |
Product Info
| Note | Controlled-ON Time (hysteretic) | Type | Step Down |
| Series | LM3402HV | Features | Adjustable Switch Frequency Enable/Shutdown Thermal Shutdown Integrated Switch |
| Software | SNVS450E | Topology | PWM, Step-Down (Buck) |
| Manufacturer | Texas Instruments | Functional Diagram | fbd_snvs450e.gif |
| Utilized IC / Part | View | Internal Connection | Yes |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
551600000-001A/NOPB
Texas Instruments Incorporated
. 551600000-001A/NOPB - LM3402, LM3404 WEBENCH® Buildit Board LED Driver Evaluation Board from Texas Instruments. from now!
$52.0880
Details
LM3402HVEVAL
Texas Instruments
Evaluation Board For LM3402HV BOARD EVALUATION FOR LM3402HV LM3402HV, LED LIGHTING, EVAL BOARD
$262.8200
Details

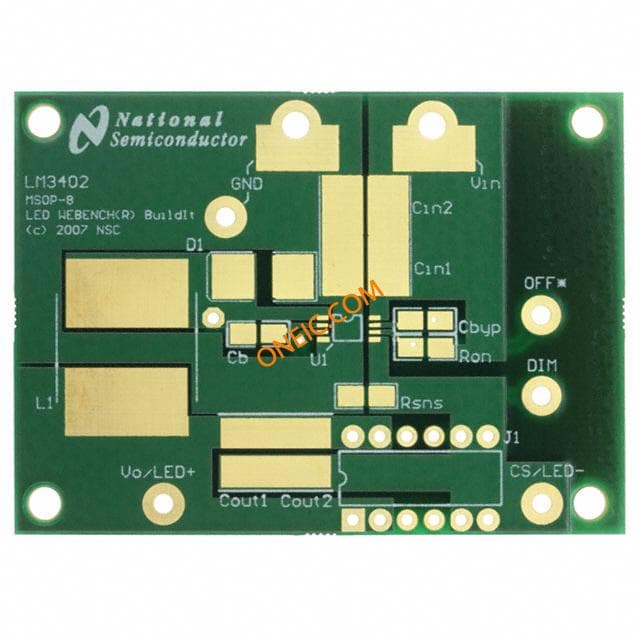

551600003-001A
Texas Instruments
BOARD WEBENCH MSOP LM3402
$126.6160
Details
