LM311D
| Manufacturer | |
| Description | Comparator Single ±15V/30V 8-Pin SOIC Tube Comparator ICs Single Channler IC DIFF COMP W/STROBE 8-SOIC LM311D, Single Comparator Open Collector/Emitter 0.165μs 5, 9, 12, 15, 18, 24, 28V 8-Pin SOIC Comparator Single �15V/30V 8-Pin SOIC Tube IC, COMPARATOR, SMD, SOIC8, 311 Differential Comparator With Strobes Comparator Single SOIC-8, LM311, LM311D, Texas Instruments R 比较器, 开路集电极/发射极输出, 0.165μs, 多种电源电压适用, 8引脚 SOIC封装 Analog Comparators Single Channler |
| Category |
Business
| Product | Analog Comparators | Product Category | Comparator ICs |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :311 | Rad Hardened | No |
Electrical
| Gain | 106.02 dB | Output Type | Open Collector/Emitter |
| Power - Input | Single/Dual | Response Time | 0.165 us |
| Comparator Type | :High Speed | Output Function | Yes |
| Current - Output | 7.5 mA | Current - Supply | 7.5 mA |
| Voltage - Supply | 3.5 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Voltage - Threshold | 7.5 mV | Current - Input Bias | 250 |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | 7.5 mV |
| Current - Output (Typ) | 50 mA | Rail-to-Rail Operation | No |
| Current - Quiescent (Iq) | 7.5 | Current - Quiescent (Max) | 7.5mA |
| Current - Input Bias (Max) | 0.25µA @ ±15V | Voltage - Supply (Vcc/Vdd) | 30 |
| Vos (Offset Voltage @ 25C) | 7.5 | Voltage - Supply Span (Typ) | �3/�5/�9/�12 V |
| Voltage - Input Offset (Max) | 7.5 mV | Voltage - Output Difference (Typ) @ Distance | 106.02 dB |
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Max Load | 0.5 | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | General Purpose | Series | LM311 |
| Features | :Open Collector, Open Drain | Software | SLCS007I |
| Base Unit | :311 | Technology | Bipolar |
| Manufacturer | Voltage Comparator | Functional Diagram | fbd_slcs007i.gif |
| Utilized IC / Part | :LM311D | Output Configuration | :MOS, TTL |
| Number of Comparators | :1 | Printed Circuit Board | 8 |
Environmental
| Switching Cycles | 0.115 | Temperature Range | :Commercial |
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
Documents & Media
Similar Parts
MPY634KP
texas instruments
Analog Multiplier 4-Bit 14-Pin PDIP Tube IC ANALOG MULTIPLIER 14 DIP MPY634KP, Analogue Multiplier 4-Bits 14-Pin PDIP Multipliers / Dividers ANALOG MULTIPLIER IC, MULTIPLIER, PRECISION, 10MHZ, 14DIP Wide Bandwidth Precision Analog Multiplier Multiplier IC DIL-14, MPY634, MPY634KP, Texas Instruments 电压倍增器, 14针 PDIP封装
UAF42AP
texas instruments
Active Filter Quad SW-CAP UNIV 2nd Order 100kHz 14-Pin PDIP Tube IC UNIVERSAL ACTIVE FILTER 14DIP UAF42AP, Active Filter Quad, Universal Filter, 2nd Order Switched Capacitor 100kHz, 14-Pin PDIP Active Filters Universal Active Filter IC, FILTER UNIVERSAL ACTIVE, DIP14 Universal Active Filter Active Filter DIL-14, UAF42, UAF42AP, Texas Instruments Texas Instruments 四 2阶 通用滤波器 , 连续时间结构, 100kHz, 14针 PDIP封装 Active Filter Universal Active Filter

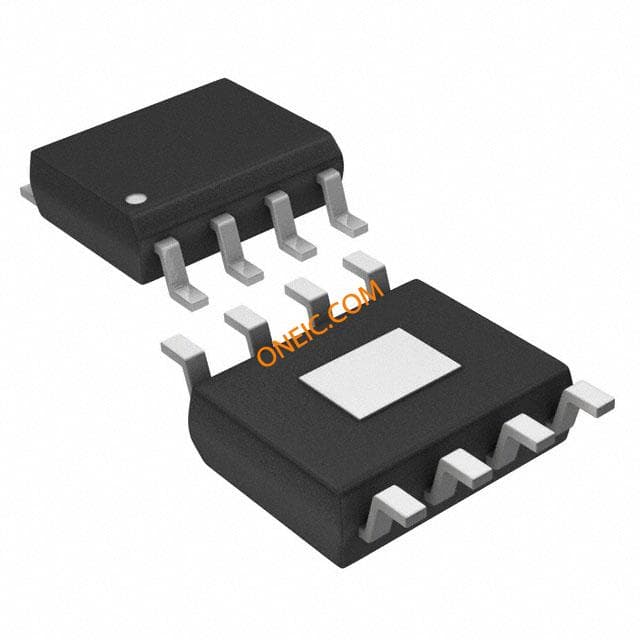

TPS5430DDA
