LM3102EVAL
| Manufacturer | |
| Description | Evaluation Board Of LM3102 BOARD EVALUATION LM3102 |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | RoHS Not Applicable |
Electrical
| Current - Output | 2.5A | Regulator Topology | Buck |
| Frequency - Switching | 500kHz | Voltage - Input (Min) | 3.3V |
Mechanical
| Board Thickness | Fully Populated | ||
Product Info
| Contents | Board | Features | Application Notehttp://www.ti.com/lit/an/snva638a/snva638a.pdfhttp://www.ti.com/lit/an/snaa136a/snaa136a.pdfUser Guidehttp://www.ti.com/lit/ug/snva248a/snva248a.pdfhttp://www.ti.com/lit/ug/snva248/snva248.pdf |
| Technology | DC to DC Converter and Switching Regulator Chip | Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated | Utilized IC / Part | LM3102 |
Documents & Media
Similar Parts

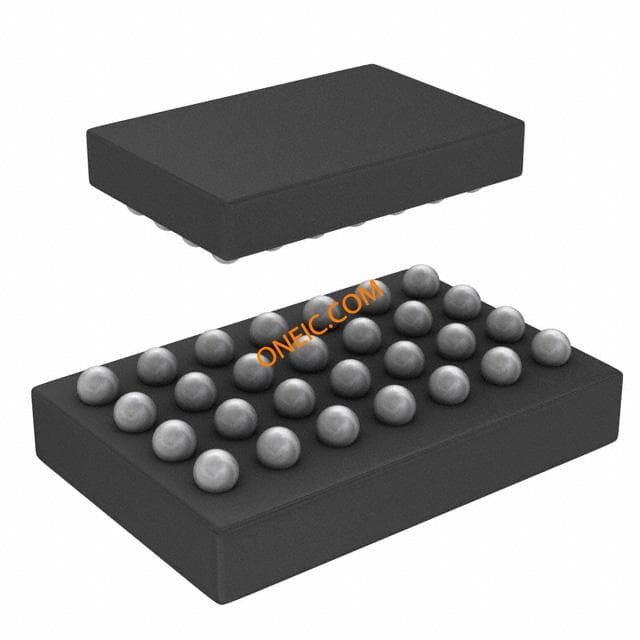

LM3102TLX-1/NOPB
