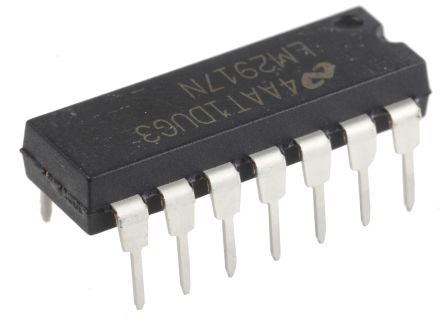

LM2917N/NOPB
| Manufacturer | |
| Description | FVC 14-Pin PDIP Rail Voltage to Frequency & Frequency to Voltage FREQ TO VLTG CONVERTER IC CONVERTER FREQ TO VOLT 14-DIP LM2917N/NOPB, Frequency to Voltage Converter ±1%FSR, 14-Pin MDIP IC, F/V CONVERTER, 10KHZ, 0.3%, DIP-14 Integrated circuit: f/U converter; 50mA; 1.58W; 0÷28VDC; DIP14 Frequency to Voltage Converter U/F converter IC DIL-14, LM2917, LM2917N/NOPB, Texas Instruments 频率-电压转换器, ±1%FSR, 14针 MDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LM2917NNOPB | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Frequency | :5kHz | Linearity | ±1 %FSR |
| Full Scale | :- | Power - Input | Single |
| Power - Rated | 1.58W | Converter Type | FVC |
| Voltage Rating | 2.3...8.3V DC | Frequency - Max | 10kHz |
| Current - Output | 50mA | Current - Supply | 3.8mA |
| Voltage - Supply | 12 V | Power Supply Type | Single |
| Current Rating (Max) | Catalog | Voltage - Supply (Vcc/Vdd) | 28 |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 19.05mm | Weight | 0.002 |
| Packaging | Tube | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :14 |
| Package / Case | 14PDIP | Package Cooled | MDIP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 50 |
| Size / Dimension | 19.05 x 6.35 x 3.3mm | Number of Positions | 14 |
| Supplier Device Package | 14-DIP | ||
Product Info
| Spg | 50 | Type | Frequency to Voltage |
| Series | LM2917-N | Software | SNAS555C |
| Number of Units | 1 | Utilized IC / Part | View |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
