点击放大查看

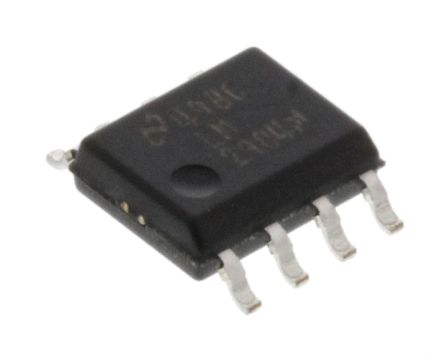

LM2904M/NOPB
| Manufacturer | |
| Description | OP Amp Dual GP ±13V/26V 8-Pin SOIC N Rail IC OPAMP GP 1MHZ 8SOIC LM2904M/NOPB, Dual Operational Amplifier 1MHz 5 to 24V, 8-Pin SOIC Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP OP Amp Dual GP �13V/26V 8-Pin SOIC Rail IC, OP AMP, DUAL, 1MHZ, 8SOIC Low Power Dual Operational Amplifier Operational Amplifier Dual 1 MHz SO-8, LM2904, LM2904M/NOPB, Texas Instruments Texas Instruments 双 运算放大器, 1MHz, 5 → 24 V, 8针 SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 95 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423300 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Gain | 100 dB | PSRR | 50 dB |
| Slew Rate | 0.1 V/us | Vn at 1kHz | 40 |
| Output Type | No | Offset Drift | 7 |
| Power - Input | Single/Dual | Power - Rated | 0.53 W |
| Transistor Type | :Low Power | CMRR, PSRR (Typ) | 50 dB |
| Current - Output | 1mA | Current - Supply | 1.2@5V@-40C to 85C mA |
| Voltage - Supply | 3 V | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 45nA |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | :2 |
| Voltage - Input (Min) | 2mV | Gain Bandwidth Product | 1 MHz |
| Current - Quiescent (Iq) | 0.6 | Current - Input Bias (Max) | 0.25@5V uA |
| Current - Output / Channel | 40mA | Vos (Offset Voltage @ 25C) | 7 |
| Input Noise Voltage Density | 40 nV/rtHz | Voltage - Supply Span (Typ) | �3/�5/�9/�12 V |
| Voltage - Input Offset (Max) | 7@26V mV | Voltage - Output Difference (Typ) @ Distance | 100 dB |
Mechanical
| Weight | 0.01 | Bandwidth | :1MHz |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 95 | TUBE |
| Number of Positions | 8 | Supplier Device Package | 8-SOIC |
Product Info
| Type | General Purpose Amplifier | Series | LM2904-N |
| Shutdown | No Shutdown | Software | SNOSBT3I |
| Base Unit | :2904 | Technology | Bipolar |
| Amplifier Type | General Purpose | Number of Circuits | 2 |
| Utilized IC / Part | View | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
