LM25574MTX/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Inv/Step Down 6V to 42V 16-Pin TSSOP T/R IC REG BUCK ADJ 0.5A 16TSSOP Voltage Regulators - Switching Regulators 42V 0.5A SD Switching Reg Conv DC-DC Single Step Down 6V to 42V 16-Pin TSSOP T/R DC-DC CONV, BUCK, TSSOP-16 SIMPLE SWITCHER® 42V, 0.5A Step-Down Switching Regulator Switching Regulator 0.5 A TSSOP-16, LM25574, LM25574MTX/NOPB, Texas Instruments Switching Voltage Regulators 42V 0.5A SD Switching Reg |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SIMPLE SWITCHER | Other Names | LM25574MTX/NOPBCT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | PWM Type | Current Mode, Hybrid |
| Duty Cycle | 95 | Efficiency | 90 % |
| Output Type | Adjustable | Voltage Rating | 1.225 to 40 V |
| Delay Time - ON | Adjustable | Current - Output | 0.5 A |
| Voltage - Supply | 6 to 42 V | Number of Outputs | 1 |
| Regulator Topology | Inverting/Step Down | Current - Switching | 0.7 |
| Switching Regulator | Yes | Current Rating (Max) | Catalog |
| Must Release Voltage | Adjustable | Frequency - Switching | 50 to 1000 kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 1.23 V ~ 40 V |
| Current - Quiescent (Iq) | 1 | DC Voltage - Input (Min) | 6 V |
| Voltage Regulation - Load | External | Accuracy - Voltmeter; Ammeter | 1.5 |
Mechanical
| Weight | 0.000104 | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16TSSOP |
| Package Cooled | TSSOP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | 2500 | LARGE T&R | Number of Positions | 16 |
| Supplier Device Package | 16-TSSOP | ||
Product Info
| Type | Inverting|Step Down | Series | LM25574 |
| Features | Enable Tracking | Software | SNVS483G |
| Topology | Buck | Application | Industrial |
| Manufacturer | SIMPLE SWITCHER | Control Method | Current Mode |
| Functional Diagram | fbd_snvs483g.gif | Utilized IC / Part | View |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Online Document
PDF Document
Similar Parts
LM25574EVAL
Texas Instruments
Power Management IC Development Tools LM25574 EVAL BOARD Evaluation Board For Simple Switcher 42V, 0.5A Step-Down Switching Regulator BOARD EVALUATION FOR LM25574 LM25574EVAL, Development Kit, Power Management, Evaluation Board
$355.7080
Details

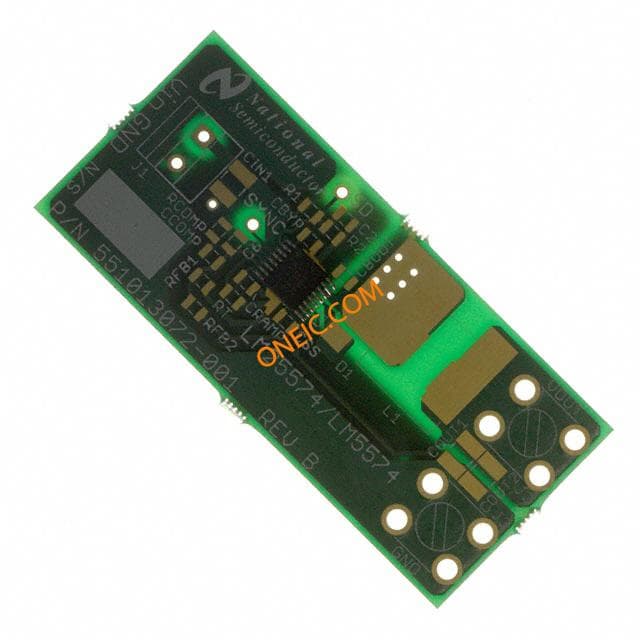

LM25574BLDT
