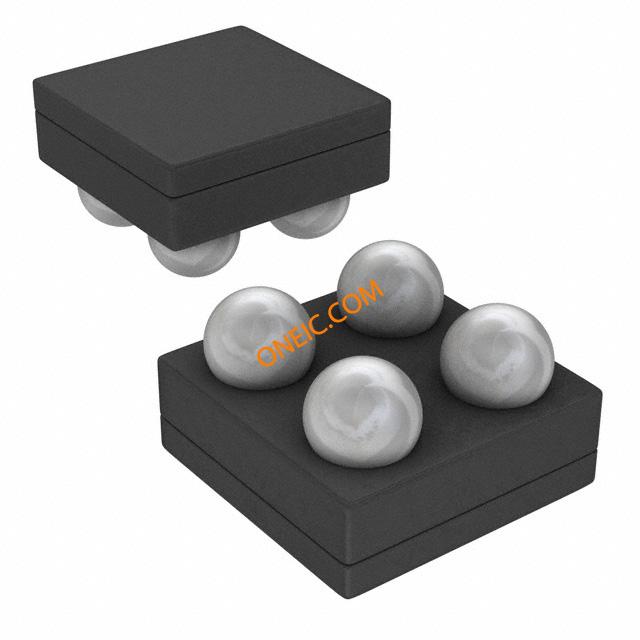

点击放大查看
LM20SITL/NOPB
| Manufacturer | |
| Description | Temp Sensor Analog(Voltage) 4-Pin uSMD T/R IC TEMP SENSOR 2.4V MICROSMD Board Mount Temperature Sensors 2.4V micro SMD Temp Sensor ±1.5°C Analog Output Temperature Sensor Temperature sensor MicroSMD-4, LM20SITL/NOPB, Texas Instruments |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LM20SITL/NOPBCT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | BGA |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | - 11.77 mV/C | Output | Analog |
| Accuracy | ±3.5(Max) °C | Interface | Analog Output |
| Tolerance | ±3.5°C | Output Type | Analog(Voltage) |
| Power - Input | 2.4...5.5 V | Voltage Rating | 2.4 |
| Current - Output | 10 mA | Voltage - Supply | 2.4 to 5.5 V |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 2.4 V |
| Current Transfer Ratio (Min) | -11.77 mV/°C | ||
Mechanical
| Width | 0.99(Max) | Packaging | Tape and Reel |
| Lead Style | Ball | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 4uSMD |
| Package Cooled | uSMD | Length - Overall | 0.99(Max) |
| Package Quantity | uSMD | Number of Positions | 4 |
| Shell Size - Insert | 0.41(Max) | Supplier Device Package | 4-DSBGA |
Product Info
| Series | LM20 | Features | Industry standard pinout |
| Function | Temp Sensor | Shutdown | Yes |
| Software | SNIS106Q | Configuration | Remote |
| Pattern Number | Y | Functional Diagram | fbd_snis106q.gif |
| Printed Circuit Board | 4 | ||
Environmental
| Temperature Range | -40...+125 °C | Temperature - Test | -40 to 125 |
| Sensing Temperature | -40°C ~ 125°C | Operating Temperature | - 55 C |
| Temperature Coefficient | -40°C ~ 125°C | Temperature Coefficient (Typ) | 1.5 |
| Operating Temperature - Junction | 125C | ||
