LM1117T-3.3/NOPB

Manufacturer	Texas Instruments Incorporated
Description	LDO Regulator Pos 3.3V 0.8A 3-Pin(3+Tab) TO-220 Rail IC REG LDO 3.3V 0.8A TO220-3 LM1117T-3.3/NOPB, Low Dropout Voltage Regulator, 1.5A, 3.3V ±1%, 3-Pin TO-220 LDO Voltage Regulators 800MA LDO LINEAR REG IC, LDO VOLT REG, 0.8A, 15V, TO220-3 Voltage stabiliser; LDO, fixed; 3.3V; 0.8A; THT; TO250 800mA Low-Dropout Linear Regulator LDO voltage regulator 3.3 V TO-220, LM1117 3.3, LM1117T-3.3/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 800mA, 3.3 V输出 ±1%, 3针 TO-220封装
Category	Integrated CircuitsPower Management ICsPower Management ICs

对参数有疑问？问 AI 助手

Business

Standard Package	Rail / Tube	Factory Pack Quantity	45
Standard Package Name	TO-220

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (16-Dec-2013)
EU RoHS	Compliant	Tariff No	85423990
Part Status	ACTIVE	Rad Hardened	No

Electrical

Noise	75	Output	1
Accuracy	±1 %	Output Type	Fixed
Regulator Type	Linear	Voltage Rating	15 V
Line Regulation	1mV(Typ)	Load Regulation	1(Typ) mV
Current - Output	0.8 A	Voltage - Supply	1.1@100mA\|1.15@500mA\|1.2@800mA V
Number of Outputs	1	Regulator Topology	Positive Fixed
Capacitance @ Vr, F	Non-Ceramic	Current Rating (Max)	Catalog
Number of Regulators	1	Voltage - Input (Min)	3.3V
Output Voltage Accuracy	�1 %	Current - Quiescent (Iq)	5
Current - Quiescent (Max)	10 mA	Voltage - Continuous Operating (Max) (MCOV)	:15V

Mechanical

Width	4.7mm	Height	8.89mm
Length	10.16mm	Weight	0.12
Packaging	Rail	Tab Width	Tab
Lead Style	Through Hole	Mounting Type	Through Hole
Mounting Style	Through Hole	Number of Pins	:3
Package / Case	3TO-220	Package Cooled	TO-220
Material Finish	:-	Length - Overall	10.16
Package Quantity	TO-220	Size / Dimension	10.16 x 4.7 x 8.89mm
Number of Positions	3	Shell Size - Insert	8.89(Max)
Supplier Device Package	TO-220-3

Product Info

Spg	900	Type	Linear
Series	LM1117-N	Features	Current Limit\|Thermal Protection
Polarity	Positive	Software	SNOS412M
Topology	LDO	Pattern Number	Y
Number of Units	1	Outputs and Type	Adjustable Output Fixed Output
Functional Diagram	fbd_snos412m.gif	Utilized IC / Part	View
Output Configuration	1.8 2.5 3.3 5	Printed Circuit Board	3

Environmental

Temperature - Test

0 to 125

Operating Temperature

0 to 125 °C

Documents & Media

PDF Document

lm1117-n.pdf

PDF Document

1768142.pdf

PDF Document

LM1117-N, 1117I Series

Similar Parts

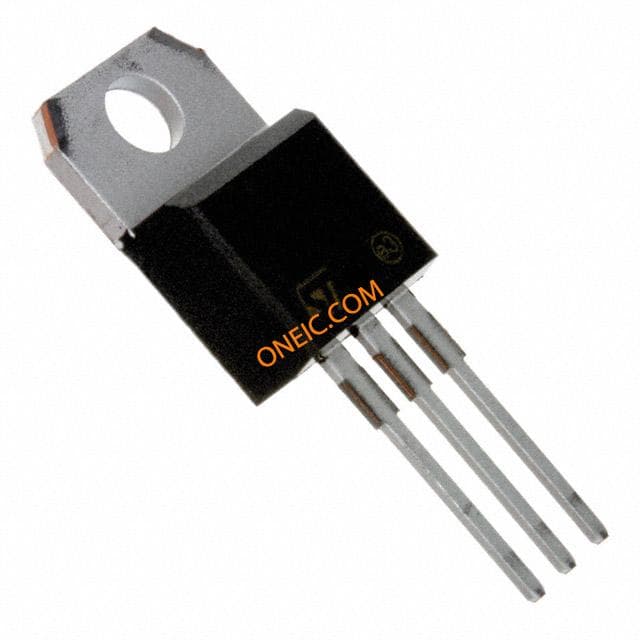

LD1117V33
