ISO7242CDW

Manufacturer	Texas Instruments Incorporated
Description	OptoCoupler Buffer-OUT 4-CH 16-Pin SOIC Rail Digital Isolator Logic 4-CH 25Mbps 16-Pin SOIC Rail IC DGTL ISO 4CH CMOS 16SOIC Isolator Interface IC Quad Ch 2/2 25Mbps Dig Iso DIGITAL ISOLATOR, 4CH, 42NS, SOIC-16 IC, DIGITAL ISOLATOR, 42NS, SOIC-16 Quad Channel, 2/2, 25Mbps, Digital Isolator Texas Instruments 2通道数字隔离器, 2500 V 有效值隔离电压, 16针 SOIC Digital Isolators Quad Ch 2/2 25Mbps Dig Iso
Category	Integrated CircuitsInterface ICsInterface ICs

对参数有疑问？问 AI 助手

Business

Other Names	296-22966-5	Product Category	Isolator Interface IC
Standard Package	Rail / Tube	Factory Pack Quantity	40
Standard Package Name	SOIC

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (16-Dec-2013)
EU RoHS	Compliant	Tariff No	85423990
Part Status	ACTIVE	Rad Hardened	No
ESD Protection	±1@CDM/±4@HBM/±0.2@MM	Approval Agency Marking	CSA/DIN/EN/IEC/UL/VDE

Electrical

Speed	25	Output	Buffer
Data Rate	25Mbps	Output Type	Logic
Isolation Type	2800	Data Rate (Max)	25Mbps
Output Function	High	Rise Time (Typ)	2(Typ)
Current - Output	:15mA	Voltage - Supply	3.15 to 5.5 V
Propagation Delay	56ns	Number of Channels	4
Voltage - Breakdown	4000	Voltage - Isolation	2800 V
Current Rating (Max)	Catalog	Bidirectional Channels	2/2
Voltage - Supply (Min)	3.15 V	Power Dissipation (Max)	220
Current - Quiescent (Iq)	16	Delay Time - Propagation	42 ns
Input Logic Level - High	TTL	Max Propagation Delay @ V, Max CL	2(Typ)
Propagation Delay tpLH / tpHL (Max)	56 ns	Voltage - Rated AC (Phase to Phase)	560
Common Mode Transient Immunity (Min)	25	Voltage - Continuous Operating (Max) (MCOV)	560Vp

Mechanical

Width	7.6(Max)	Weight	0.014829 oz
Packaging	Rail	Lead Style	Gull-wing
Mounting Type	Surface Mount	Mounting Style	SMD/SMT
Number of Pins	:16	Package / Case	16SOIC
Package Cooled	SOIC	Material Finish	:MSL 3 - 168 hours
Length - Overall	10.5(Max)	Package Quantity	SOIC
Number of Positions	16	Shell Size - Insert	2.35(Max)
Supplier Device Package	16-SOIC	Pulse Width Distortion (Max)	4

Product Info

Series	ISO7242C	Software	SLLS868Q
Pattern Number	Y	Functional Diagram	fbd_slls868q.gif
Utilized IC / Part	View	Printed Circuit Board	16
Inputs - Side 1/Side 2	2/2

Environmental

Temperature - Test	-40 to 125	Operating Temperature	-40 to 125 °C
Operating Temperature - Junction	125C

Documents & Media

PDF Document

16DW Datasheet Update 17/Sep/2013

PDF Document

ISO7240CF, ISO7240-42C/M

PDF Document

PDF Document

PDF Document

Online Document

Similar Parts

XTR117AIDGKT

texas instruments

Current-Loop Transmitter 8-Pin VSSOP T/R IC 4-20MA CURRENT-LOOP TX 8VSSOP Current Sense Amplifiers XTR117 4-20mA Crnt Loop Transmitter AMPLIFIER, CURRENT TRANSMITTER, MSOP-8 XTR117 4-20mA Current Loop Transmitter 电流回路发送器, 380kHz 5V, 8针 MSOP封装 Sensor Interface XTR117 4-20mA Crnt Loop Transmitter

$11.7000

Details

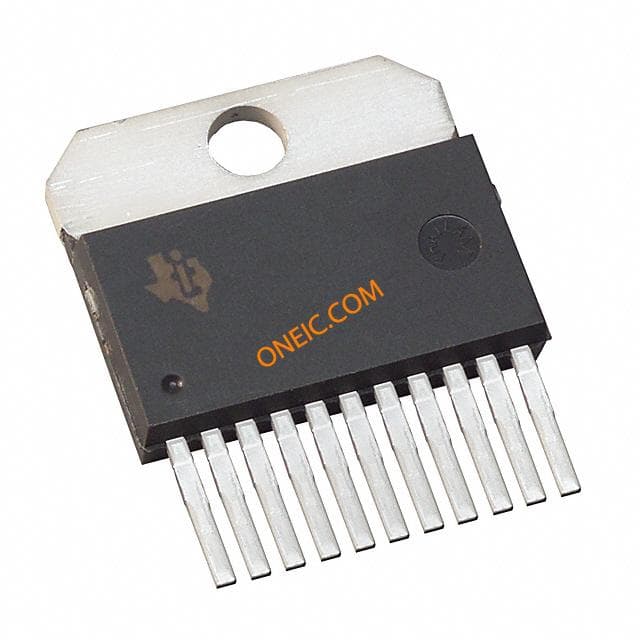

OPA549S
