ISO721DG4
| Manufacturer | |
| Description | OptoCoupler Buffer-OUT 1-CH 8-Pin SOIC Tube Digital Isolator Logic 1-CH 100Mbps 8-Pin SOIC Rail IC DGTL ISO 1CH CMOS 8SOIC High Speed Digital Isolator 8-Pin SOIC Isolator Interface IC 3.3V/5V High-Speed Digital DIGITAL ISOLATOR, 4KV, 100MBPS, 721 Single 100Mbps Digital Isolator |
| Category |
Business
| Product Category | Isolator Interface IC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | ACTIVE | ESD Protection | ±1@CDM/±2@HBM |
| Approval Agency Marking | CSA/DIN/EN/IEC/UL/VDE | ||
Electrical
| Speed | 100 | Output | Buffer |
| Data Rate | 100Mbps | Output Type | Logic |
| Isolation Type | 2000 | Data Rate (Max) | 100Mbps |
| Output Function | High | Rise Time (Typ) | 2ns |
| Current - Output | :10mA | Voltage - Supply | 3 to 5.5 V |
| Propagation Delay | 17ns | Number of Channels | 1 |
| Voltage - Breakdown | 4000 | Voltage - Isolation | 4000Vpk |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | :1 |
| Bidirectional Channels | 1/0 | Voltage - Supply (Min) | 5.5 |
| Power Dissipation (Max) | 159 | Current - Quiescent (Iq) | 12 |
| Delay Time - Propagation | 24 ns | Input Logic Level - High | TTL |
| Current - Input Bias (Max) | 10 μA | Max Propagation Delay @ V, Max CL | 2(Typ) |
| Voltage - Forward (Vf) (Max) @ If | 5.5V | Propagation Delay tpLH / tpHL (Max) | 24 ns |
| Voltage - Rated AC (Phase to Phase) | 560 | Common Mode Transient Immunity (Min) | 25 |
| Voltage - Continuous Operating (Max) (MCOV) | 560Vp | ||
Mechanical
| Depth | 1.75mm | Width | 4mm |
| Length | 5mm | Weight | 0.002677 oz |
| Packaging | Rail | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Series | ISO721 | Software | SLLS629K |
| Base Unit | :721 | Pattern Number | Y |
| Functional Diagram | fbd_slls629k.gif | Utilized IC / Part | View |
| Printed Circuit Board | 8 | Inputs - Side 1/Side 2 | 1/0 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
DCP010505BP
texas instruments
Conv DC-DC Single 4.5V to 5.5V 7-Pin PDIP Tube IC REG ISOLATED 5V 0.2A 7DIP DCP010505BP, DC-DC Converter,, 0.4MHz, 7-Pin PDIP DC/DC Converters Mini 1W Iso Unreg DC/DC Converter DC/DC CONVERTER, 1W 5V/5V, 10505 DC-DC converter; Uin:4.5÷5.5V; 200mA; DIP14 Miniature, 1W Isolated Unregulated DC/DC Converters Texas Instruments 直流-直流转换器, 200mA, 4.5 → 5.5 V输入, 0.4 MHz, 7针 PDIP封装
ISO150AUG4
texas instruments
Digital Coupler 12-Pin SOP Tube IC DGTL ISO 2CH CMOS 80MBD 12SOP Dual Isolated Bidirectional Dig Coupler Isolator Interface IC Dual Isol Bi-Dir Digital Coupler DIGITAL COUPLER, DUAL ISOL BI-DIR
DCH010505DN7
texas instruments

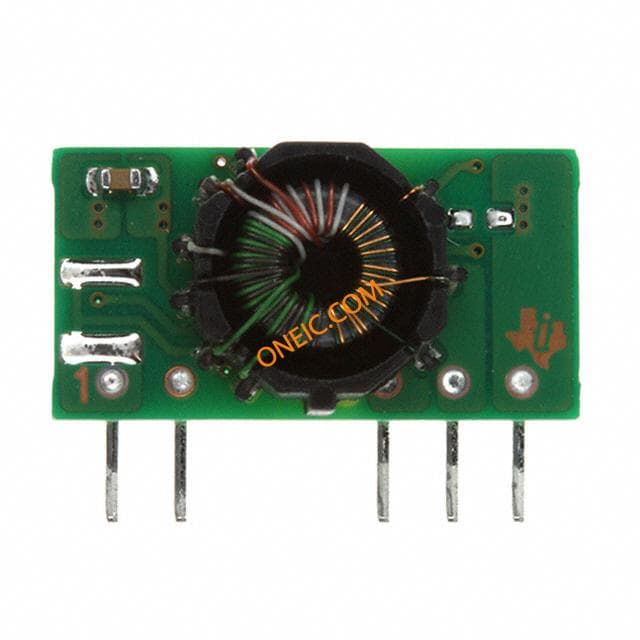

Module DC-DC 2-OUT 5V/-5V 0.1A/-0.1A 1W 5-Pin SIP Module Tray CONV DC-DC MINI 1W 3KVDC ISOL DCH010505DN7, Dual DC-DC Converter, Step Down, 5-Pin SIP Module DC/DC Converters Mini 1W 3kVDC Isolated DC-DC Outp IC, CONV DC-DCMINI1W3KVDCISOL Miniature, 1W, 3kVDC Isolated DC/DC Converters Texas Instruments , 双 直流-直流转换器, 降压, 100mA, 5针 SIP 模块封装
