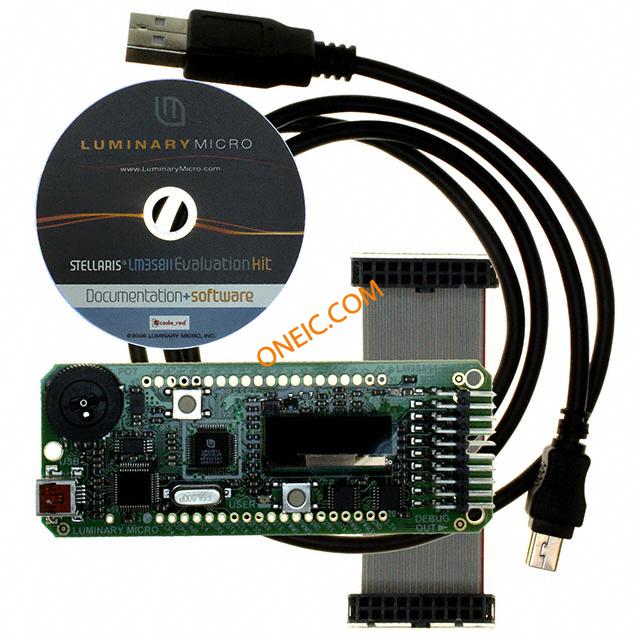

EKT-LM3S811
| Manufacturer | |
| Description | Evaluation Board For LM3S811 Development Boards & Kits - ARM LM3S811 Eval Brd BOARD EVAL LM3S811 ARM CORTEX M3 LM3S811, ICDI, CODE RED, EVAL KIT |
| Category |
Business
| Product | Development Kits | Product Category | Development Boards & Kits - ARM |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85411000 | ||
Electrical
| Core Type | ARM Cortex M3 | Interface | USB |
| Number of Bits | :32 bit | Number of Elements | :LM3S |
Mechanical
| Weight | 0.25 | Packaging | Bulk |
| Number of Cores/Bus Width | 32 bit | ||
Product Info
| Type | Development Kit | Contents | Eval Board, Cables and Code Red Technologies CD |
| Features | :OLED Graphics Display, USB Interface, 20-pin JTAG Debug Connector | Function | Can evaluate, protype, and create application-specific designs |
| Kit Contents | :Evaluation Board, USB Cable, 20-pin JTAG/SWD Target Cable, CD Include Complete Documentation | Manufacturer | :Stellaris X00 |
| Tool Type Feature | LM3S811 | RF Family/Standard | LM3S811 |
| Chipset Manufacturer | :Texas Instruments | MCU Supported Families | :Stellaris LM3S800 |
| For Use With/Related Products | LM3S811 | ||
