DDC112U
| Manufacturer | |
| Description | ADC Single Delta-Sigma 2ksps 20-bit Serial 28-Pin SOIC Tube Single ADC Delta-Sigma 2ksps 20-bit Serial 28-Pin SOIC Tube IC ADC 20BIT DUAL-INPUT 28-SOIC Analog to Digital Converters - ADC Dual Current Input 20-Bit 20BIT ADC, DUAL, 3KHZ, SOIC28, 112 A/D converter; Channels:2; 20bit; 3ksps; 4.75÷5.25VDC; SO28 Dual Current Input 20-Bit Analog-To-Digital Converter Texas Instruments , 20 位 ADC, SPI接口, 28针 SOIC封装 |
| Category |
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Serial (SPI) | Input Type | Current |
| Resolution | 20 Bit | Input Range | 50-1000 pC |
| Input Signal | Single-Ended | Power - Input | Analog and Digital |
| Power - Rated | 100 W | Converter Type | General Purpose |
| Data Interface | Serial | Number of Bits | 20 |
| Data Rate (Max) | 2 KSPs | Current - Output | :14.8mA |
| Number of Inputs | 2 | Voltage - Supply | 5 V |
| Resolution (Bits) | :20bit | Voltage Reference | External |
| Number of Channels | 2 Channel | Number of Elements | 1 |
| Sampling Frequency | 2 ksps | Analog Input:Output | 5.25 |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Analog and Digital |
| Power - Average Forward | 80 | Power Dissipation (Max) | 100 mW |
| Voltage - Supply, Digital | :4.75V to 5.25V | Voltage Supply - Internal | :4.75V to 5.25V |
| Sampling Rate (Per Second) | 2k | Differential - Input:Output | No |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | Yes |
Mechanical
| Width | 7.6(Max) | Weight | 0.025778 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :28 |
| Package / Case | 28SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 18.1(Max) |
| Package Quantity | SOIC | Number of Positions | 28 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 28-SOIC |
Product Info
| Spg | 1 | Type | A/D converter |
| Series | DDC112 | Software | SBAS085B |
| Base Unit | :112 | Architecture | Delta-Sigma |
| Number of Units | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 28 | Number of A/D Converters | 2 |
| Number of Inputs and Type | 2 Single-Ended, Unipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts

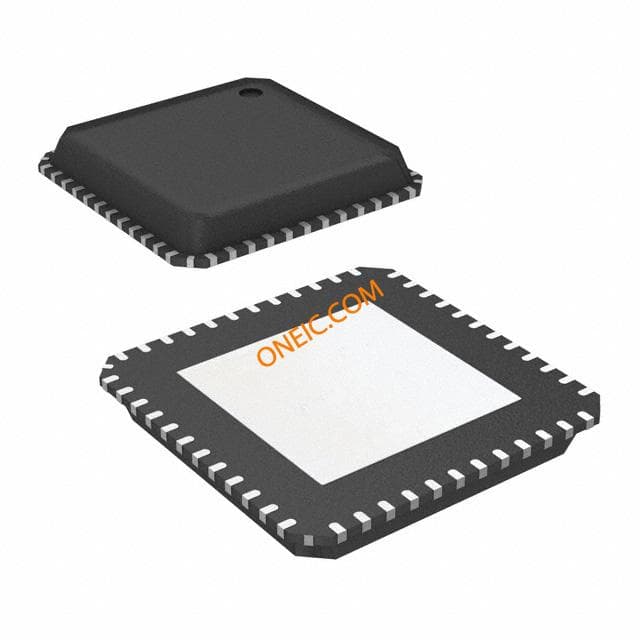

DDC118IRTCT
