DCP011512DBP-U
| Manufacturer | |
| Description | Conv DC-DC Dual Step Down 13.5V to 16.5V 7-Pin SOP Tube IC REG ISOLATED +/-12V 41MA 7SOP DC/DC Converters Mini 1W Iso Unreg DC/DC Converter Miniature, 1W Isolated Unregulated DC/DC Converters |
| Category |
Business
| Product | Isolated | Other Names | DCP011512DBPU |
| Product Category | DC/DC Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 2 | Isolation | Isolated |
| Efficiency | 78(Typ) % | Output Type | Fixed |
| Power - Max | 0.97(Typ) W | Output Power | 1 W |
| Voltage Rating | 12|-12 V | Line Regulation | 15 % |
| Load Regulation | 39 % | Current - Output | 0.041|0.04 A |
| Voltage - Supply | -12.6 | Number of Outputs | 2 |
| Current - Output 2 | 0.04 | Regulator Topology | Step Down |
| Voltage - Output 4 | 12 | Power (Watts) - Max | 456mW |
| Switching Regulator | Yes | Voltage - Isolation | 1000 V |
| Frequency - Switching | 400(Typ) kHz | Voltage - Input (Min) | 12V |
| Current - Quiescent (Iq) | 19 | DC Voltage - Input (Min) | 13.5 V |
| Current - Output / Channel | 40 mA | ||
Mechanical
| Width | 6.61 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 7SOP |
| Package Cooled | SOP | Length - Overall | 19.18 |
| Package Quantity | SOP | Size / Dimension | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
| Number of Positions | 7 | Shell Size - Insert | 3.94 |
Product Info
| Type | Step Down | Series | DCP011512DB |
| Features | OTP, SCP | Software | SBVS012E |
| Utilized IC / Part | View | Printed Circuit Board | 7 |
Environmental
| Operating Temperature | -40 to 100 °C | ||
Documents & Media
Similar Parts

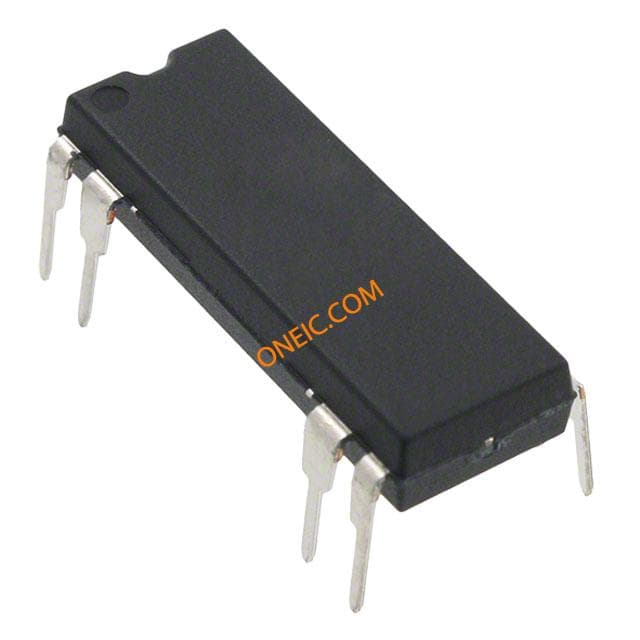

ISO122JPE4
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube AMP PRECISION ISOLATION, DIP8, 122 Precision Lowest Cost Isolation Amplifier
ISO124U
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin SOP Tube IC OPAMP ISOLATION 50KHZ 8SOIC ISO124U, Isolation Amplifier, 8-Pin SOP SP Amp ISOL Amp Single �18V 8-Pin SOP Tube IC, ISOLATION AMP, 50KHZ, 2V/ uS, SOIC-8 Operational amplifier; 4.5÷18VDC; Channels:1; SO8 Precision Lowest Cost Isolation Amplifier Isolation Amplifier SO-28, ISO124, ISO124U, Texas Instruments Texas Instruments 隔离放大器, 8引脚 SOP封装 Isolation Amplifiers Precision Low Cost Isolation Amp
ISO122PE4
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube AMP PRECISION ISOLATION, DIP8, 122 Precision Lowest Cost Isolation Amplifier

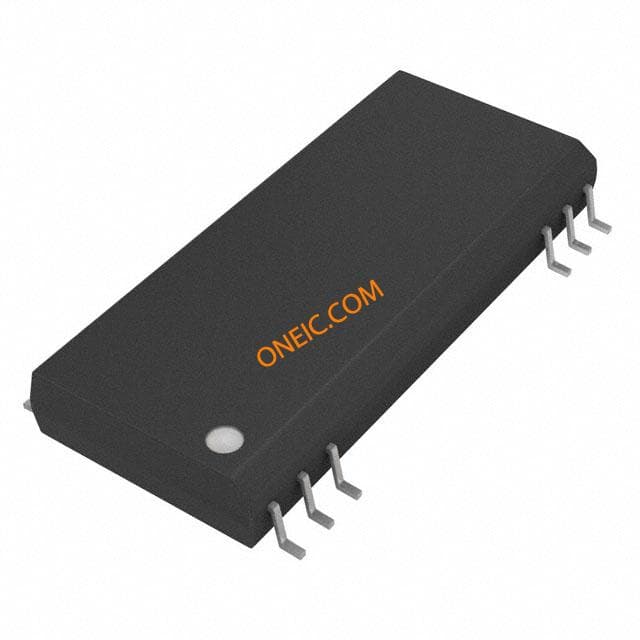

ISO150AUG4
