DAC8871SBPW
| Manufacturer | |
| Description | DAC 1-CH R-2R 16-bit 16-Pin TSSOP Tube IC DAC 16BIT 1CH LP 16-TSSOP Digital to Analog Converters - DAC 16B S-Ch Serial Interface IC, DAC, 16BIT, TSSOP-16 IC, DAC 16BIT 1CH LP 16-TSSOP 16-Bit Single Channel, Serial Interface, +/-18V (High Voltage Bipolar) Output DAC Texas Instruments , 16 位 DAC, SPI, Microwire接口, 16针 TSSOP封装 |
| Category |
Business
| Other Names | 296-22150-5 | Product Category | Digital to Analog Converters - DAC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 90 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Full Scale | ±2 LSB |
| Input Type | :Serial | Resolution | 16 Bit |
| Output Type | Voltage | Output Range | -18 |
| INL/DNL (LSB) | ±1.5 LSB | Power - Input | Dual |
| Settling Time | 1(Typ) us | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Number of Bits | 16 |
| Reference Type | Ext | Number of DAC's | 1 |
| Current - Output | :3µA | Voltage - Supply | �13.5 V |
| Distortion Rating | +/- 1.5 LSB | Number of Outputs | 1 |
| Power Supply Type | Dual | Resolution (Bits) | :16bit |
| Voltage Reference | External | Number of Channels | 1 |
| Current Rating (Max) | Catalog | Voltage Supply Source | Dual ± |
| Gain Bandwidth Product | 0.003 | Power - Average Forward | 0.015 |
| Voltage - Supply, Digital | :2.7V to 5.5V | Number of Outputs and Type | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| Voltage - Supply Span (Typ) | �15 V | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.002 |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Series | DAC8871 | Software | SBAS396A |
| Base Unit | :8871 | Architecture | R-2R |
| Pattern Number | Y | Functional Diagram | fbd_sbas396a.gif |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
| Number of A/D Converters | 1 | ||
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Similar Parts
REF102AP
texas instruments
V-Ref Precision 10V 10mA 8-Pin PDIP Tube IC VREF SERIES PREC 10V 8-PDIP Voltage References Precision Voltage Reference VOLT REF, PRECISION, 10V, 8DIP IC, ULTRA PRECISION, VOLT REF, 10V Voltage reference source; 10V; DIP8 Precision Voltage Reference Voltage reference 10 V DIL-8, REF102, REF102AP, Texas Instruments Texas Instruments Fixed 10V 电压参考, ±0.1 %精确度, 40 V输入, 8针 PDIP封装
OPA211ID
texas instruments
OP Amp Single GP R-R O/P ±18V/36V 8-Pin SOIC Tube IC OPAMP GP 80MHZ RRO 8SOIC Operational Amplifiers - Op Amps 1.1nV/Hz Noise Low Pwr Prec OpAmp OP Amp Single GP R-R O/P ?18V/36V 8-Pin SOIC Tube IC, OP-AMP GP R-R 80MHZ SGL 8SOIC 1.1nV/rtHz Noise, Low Power, Precision Operational Amplifier Texas Instruments 低功耗 运算放大器, 80MHz 轨至轨, 4.5 → 36 V, 8针 SOIC Precision Amplifiers 1.1nV/Hz Noise Low Pwr Prec OpAmp

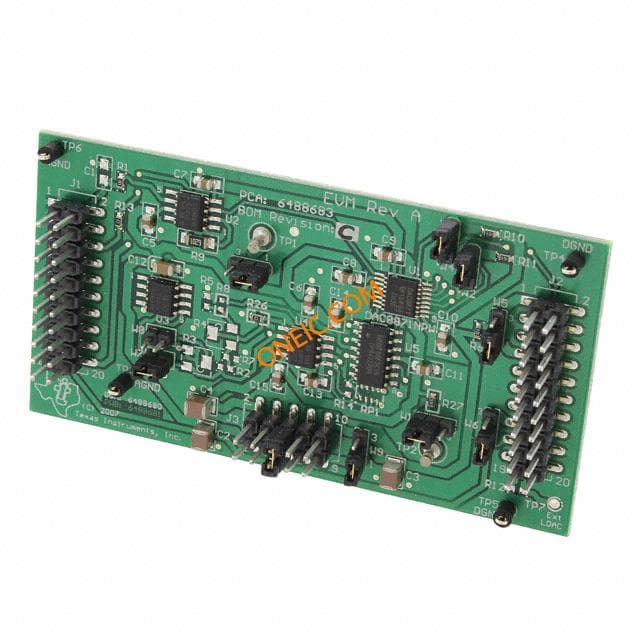

DAC8871EVM
