DAC7734EC
| Manufacturer | |
| Description | DAC 4-CH R-2R 16-bit 48-Pin SSOP Tube Digital to Analog Converters - DAC 16-Bit Quad Voltage Output Serial Input IC QUAD SER 16B VOUT D/A 48-SSOP 16-Bit, Quad Voltage Output, Serial Input Digital-to-Analog Converter |
| Category |
Business
| Product | Digital to Analog Converters | Product Category | Digital to Analog Converters - DAC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Serial | Full Scale | ±0.05 %FSR |
| Resolution | 16 Bit | Output Type | Voltage |
| Output Range | -10 | INL/DNL (LSB) | ±3 LSB |
| Power - Input | Single/Dual | Settling Time | 11 us |
| Converter Type | General Purpose | Data Interface | Serial |
| Number of Bits | 16 | Reference Type | Ext |
| Data Rate (Max) | 89 Ksps | Number of DAC's | 4 |
| Voltage - Supply | 15.75 V | Distortion Rating | +/- 3 LSB |
| Number of Outputs | 4 | Power Supply Type | Single|Dual |
| Voltage Reference | External | Number of Channels | 4 |
| Current Rating (Max) | Catalog | Voltage Supply Source | Analog and Digital, Dual ± |
| Gain Bandwidth Product | 0.05 | Power - Average Forward | 50 |
| Number of Outputs and Type | 4 Voltage, Unipolar; 4 Voltage, Bipolar | Sampling Rate (Per Second) | 89k |
| Voltage - Supply Span (Typ) | �15 V | ||
Mechanical
| Width | 7.59(Max) | Height | 2.59 mm |
| Weight | 0.021175 oz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 48SSOP |
| Package Cooled | SSOP | Length - Overall | 16(Max) |
| Package Quantity | SSOP | Number of Positions | 48 |
| Shell Size - Insert | 2.79(Max) - 0.2(Min) | Supplier Device Package | 48-SSOP |
Product Info
| Series | DAC7734 | Software | SBAS138A |
| Architecture | R-2R | Manufacturer | Texas Instruments |
| Functional Diagram | fbd_sbas138a.gif | Utilized IC / Part | View |
| Printed Circuit Board | 48 | Number of A/D Converters | 4 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
REF102AU
texas instruments
V-Ref Precision 10V 10mA 8-Pin SOIC Tube IC VREF SERIES PREC 10V 8-SOIC Voltage References Precision Voltage Reference IC, SM, VOLT REF, 10V Voltage reference source; 10V; SO8 Precision Voltage Reference Voltage reference 10 V SO-8, REF102, REF102AU, Texas Instruments Texas Instruments Fixed 10V 电压参考, ±0.1 %精确度, 40 V输入, 8针 SOIC封装
REF102CUG4
texas instruments
V-Ref Precision 10V 10mA 8-Pin SOIC Tube IC VREF SERIES PREC 10V 8-SOIC REF102CUG4, Precision Voltage Reference 9.998 to 10.003V, 2.5mV Accuracy, 40V Max. 8-Pin SOIC Voltage References Precision Voltage Reference IC, SM, VOLT REF, 10V Precision Voltage Reference
RE931-06
Roth Elektronik

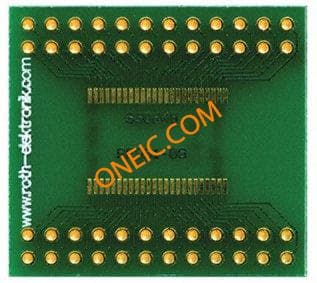

RE931-06, Surface Mount (SMT) Board SSOP Epoxy Glass Double-Sided 32.5 x 29.5 x 1.5mm FR4 ADAPTOR, SMD, SSOP-48, 0.635MM Board: universal; double sided, multiadapter; W:61.4mm; L:81.7mm
