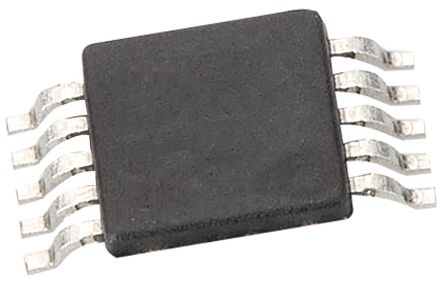

DAC7574IDGS
| Manufacturer | |
| Description | DAC 4-CH Resistor-String 12-bit 10-Pin VSSOP Tube Digital to Analog Converters - DAC 12-Bit Quad Vltg Out w/I2C Dig Interface IC 12BIT QUAD V-OUT DAC 10-MSOP 12-Bit Quad Voltage Output Digital-to-Analog Converter w/ I2C Interface Texas Instruments 四 12 位 DAC, 43ksps, I2C接口, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital to Analog Converters | Product Category | Digital to Analog Converters - DAC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 80 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Data Rate | 43ksps | Interface | Serial (2-Wire, I2C) |
| Full Scale | ±1 %FSR | Resolution | 12 Bit |
| Output Type | Voltage | Output Range | 0 |
| INL/DNL (LSB) | ±8 LSB | Power - Input | Single |
| Settling Time | 12(Typ) us | Converter Type | General Purpose |
| Data Interface | I²C, Serial | Number of Bits | 12 |
| Reference Type | Int | Data Rate (Max) | 43 Ksps |
| Number of DAC's | 4 | Voltage - Supply | 5.5 V |
| Digital I/O Lines | 串行 （I2C） | Distortion Rating | +/- 8 LSB |
| Number of Outputs | 4 | Power Supply Type | Single |
| Voltage Reference | External | Number of Channels | 4 |
| Sampling Frequency | 43 kS/s | Current Rating (Max) | Catalog |
| Voltage Supply Source | Single Supply | Gain Bandwidth Product | 1 |
| Power - Average Forward | 0.85 | Number of Outputs and Type | 4 Voltage, Unipolar |
| Sampling Rate (Per Second) | 3.4M | Voltage - Supply Span (Typ) | Not Required V |
| Accuracy - Voltmeter; Ammeter | ±1%FSR | ||
Mechanical
| Width | 3mm | Height | 1.02mm |
| Length | 3mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 10 |
| Package / Case | 10VSSOP | Package Cooled | VSSOP |
| Length - Overall | 3.1(Max) | Package Quantity | VSSOP |
| Size / Dimension | 3 x 3 x 1.02mm | Number of Positions | 10 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 10-VSSOP |
| Shell Size - Insert (Convert To) | 电阻串 | ||
Product Info
| Series | DAC7574 | Function | Y |
| Software | SLAS375 | Architecture | Resistor-String |
| Manufacturer | Texas Instruments | Development Kit | DAC7574EVM |
| Functional Diagram | fbd_slas375.gif | Utilized IC / Part | View |
| Other Specifications | 12µs | Printed Circuit Board | 10 |
| Number of A/D Converters | 4 | ||
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
