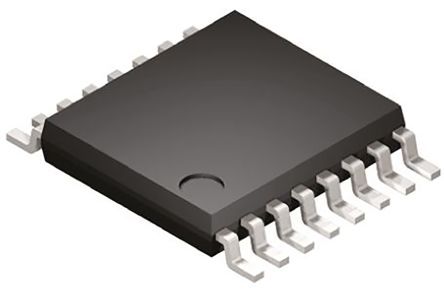

点击放大查看
DAC088S085CIMT/NOPB
| Manufacturer | |
| Description | DAC 8-CH Resistor-String 8-bit 16-Pin TSSOP Rail Digital to Analog Converters - DAC 8B Micro Pwr OCTAL DAC IC DAC 8BIT OCTAL R-R 16-TSSOP DAC088S085CIMT/NOPB, 8-Bit 8 Bit DAC 8-channel SPI, Microwire, 16-Pin TSSOP DAC, 8BIT, TSSOP-16 8-Bit Micro Power OCTAL Digital-to-Analog Converter with Rail-to-Rail Outputs Texas Instruments , 8通道 8 位 DAC, Microwire，QSPI，串行，SPI接口, 16针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | DAC088S085CIMTNOPB | Standard Package | Rail / Tube |
| Factory Pack Quantity | 92 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Full Scale | -0.75 %FSR |
| Input Type | :Serial | Resolution | 8 Bit |
| Output Type | Voltage | Output Range | 0 |
| INL/DNL (LSB) | ±0.5 LSB | Power - Input | Single |
| Settling Time | 4.5 us | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Number of Bits | 8 | Reference Type | Ext |
| Number of DAC's | 8 | Current - Output | :650µA |
| Voltage - Supply | 5.5 V | Number of Outputs | 8 |
| Resolution (Bits) | :8bit | Voltage Reference | External |
| Number of Channels | 8 | Current Rating (Max) | Catalog |
| Voltage Supply Source | Single Supply | Gain Bandwidth Product | 1 |
| Power - Average Forward | 1.95 | Number of Outputs and Type | 8 Voltage, Unipolar; 8 Voltage, Bipolar |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Weight | 0.000104 | Packaging | Tube |
| Mounting Type | Surface Mount | Number of Pins | :16 |
| Package / Case | 16TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 92 |
| Number of Positions | 16 | Supplier Device Package | 16-TSSOP |
Product Info
| Series | DAC088S085 | Software | SNAS424C |
| Architecture | Resistor-String | Functional Diagram | fbd_snas424c.gif |
| Utilized IC / Part | View | Number of A/D Converters | 8 |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 125 |
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | 125C |
