CSSTV32852GKFREP
| Manufacturer | |
| Description | Registered Buffer Single 24-CH CMOS 114-Pin BGA MICROSTAR T/R Buffers & Line Drivers Mil Enhance 24B-48B Registered Buffer IC REGISTERED BUFF 114LFBGA Enhanced Product 24 Bit To 48 Bit Registered Buffer With Sstl_2 Inputs And Outputs |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-23465-2 | Product Category | Buffers & Line Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | No | Part Status | ACTIVE |
| High Reliability | Y | ||
Electrical
| Logic Type | SSTV | Output Signal | Single-Ended |
| Number of Bits | 24, 48 | Voltage Rating | 2.5 V |
| Frequency - Max | 200(Min) MHz | Frequency Range | 200 |
| Number of Inputs | 24 | Voltage - Supply | 2.7 V |
| Number of Outputs | 48 | Number of Channels | 24 |
| Number of Elements | 1 | Current Rating (Max) | HiRel Enhanced Product |
| Voltage - Supply (Min) | 2.7 | Propagation Delay (Max) | 5 |
| Delay Time - Propagation | 3.1 ns | Current - Output High, Low | - 20 mA |
Mechanical
| Weight | 0.007305 oz | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |

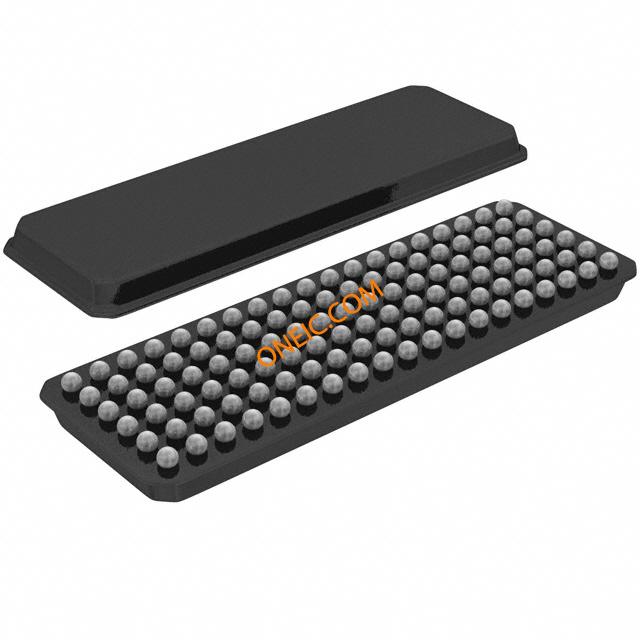

| Package / Case | 114BGA MICROSTAR | Package Quantity | BGA MICROSTAR |
| Number of Positions | 114 | Switch Actuation Level | Positive-Edge/Negative-Edge |
| Supplier Device Package | 114-BGA MICROSTAR (16x5.5) | ||
Product Info
| Series | SN74SSTV32852-EP | Process | CMOS |
| Function | Registered Buffer | Polarity | Non-Inverting |
| Software | SCES700 | Manufacturer | Texas Instruments |
| Utilized IC / Part | View | Number of Inputs and Type | 0 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
