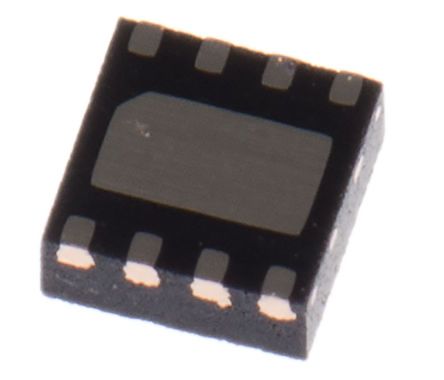

CSD16340Q3
| Manufacturer | |
| Description | Trans MOSFET N-CH 25V 21A 8-Pin SON EP T/R MOSFET N-CH 25V 60A 8SON MOSFET, N CH, 25V, 21A, 8SON 25V, N Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 60 A, Vds=25 V, 8针 SON封装 MOSFET N Channel NexFET Power MOSFET |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-25646-2 | Standard Package | Cut Tape, Tape & Reel |
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| FET Type | MOSFET N-Channel, Metal Oxide | Vgs (Max) | 10 V |
| FET Feature | Logic Level Gate | Power - Max | 3W |
| Noise Figure | Not Required dB | Power - Rated | 3 W |
| Power - Output | Not Required dB | Fall Time (Typ) | 5.2 ns |
| Frequency - Max | Not Required MHz | Transistor Type | :N Channel |
| Delay to 1st Tap | 13.8 ns | Number of Elements | 1 |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | Voltage - Breakdown | 25 V |
| Voltage - Threshold | :850mV | Current Rating (Max) | :60A |
| Resistance - RDS(On) | :3.8mohm | Rds On (Max) @ Id, Vgs | 4.5@8V mOhm |
| Power Dissipation (Max) | :3W | Propagation Delay (Max) | 16.1 ns |
| Vce(on) (Max) @ Vge, Ic | 25 V | Current Drain (Id) - Max | 21 A |
| Logic Voltage - VIL, VIH | Yes | On-State Resistance (Max) | 4.5@8V |
| Gate Charge (Qg) (Max) @ Vgs | 9.2nC @ 4.5V | Current - Peak Pulse (8/20us) | 115 |
| Switch Time (Ton, Toff) (Max) | 4.8 ns | Vce Saturation (Max) @ Ib, Ic | Not Required % |
| Drain to Source Voltage (Vdss) | 25V | Current - Peak Pulse (10/1000us) | 21 A |
| Current - Drain (Idss) @ Vds (Vgs=0) | 21 A | Input Capacitance (Ciss) (Max) @ Vds | 1350pF @ 12.5V |
| Current - Continuous Drain (Id) @ 25degC | 21A (Ta), 60A (Tc) | ||
Mechanical
| Width | 3.3 | Weight | 0.0001 |
| Packaging | Tape and Reel | Mounting Type | Surface Mount |
| Number of Pins | :8 | Package / Case | 8SON EP |
| Package Cooled | SON EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.3 | Package Quantity | SON EP |
| Number of Positions | 8 | Shell Size - Insert | 1 |
| Supplier Device Package | 8-SON | ||
Product Info
| Type | Power MOSFET | DELETED | Compliant |
| Polarity | N | Software | SLPS247E |
| Channel Type | Enhancement | Configuration | Single |
| Pattern Number | Y | Functional Diagram | fbd_slps247e.gif |
| Utilized IC / Part | View | Other Specifications | 1.2 |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -55 to 150 | Operating Temperature | -55 to 150 °C |
