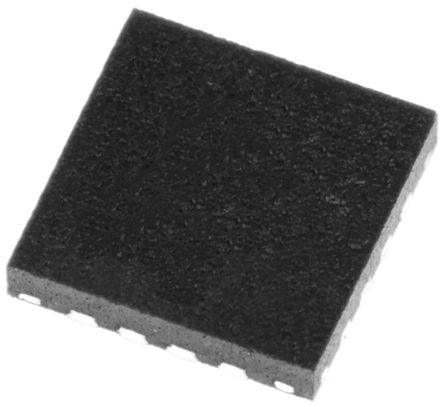

点击放大查看
CDCM1802RGTT
| Manufacturer | |
| Description | Clock Buffer/Divider 16-Pin VQFN EP T/R IC CLK BUFFER 1:2 800MHZ 16QFN Clock Buffer Clock Buffer w/ Programmable Divider Clock Buffer w/Programmable Divider, LVPECL I/O + addl LVCMOS output Texas Instruments 时钟分频器, 16针 QFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17045-2 | Product Category | Clock Buffer |
| Standard Package | Cut Tape | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Input | LVCMOS, LVPECL, LVTTL | Output | LVCMOS, LVPECL |
| Frequency | 800 | Input Type | LVPECL |
| Output Type | LVCMOS, LVPECL | Output Signal | LVPECL LVCMOS |
| Frequency - Max | 800MHz | Current - Output | 10 uA |
| Current - Supply | 10 uA | Voltage - Supply | 3 V ~ 3.6 V |
| Number of Outputs | 2 | Frequency - Output 1 | 800 |
| Ratio - Input:Output | 1:2 | Propagation Delay (Max) | 600 ps |
| Input Logic Level - High | LVPECL | Voltage - Supply (Vcc/Vdd) | 3.3 |
| Differential - Input:Output | Yes/Yes | ||
Mechanical
| Width | 3mm | Height | 0.9mm |
| Length | 3mm | Weight | 0.000808 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16VQFN EP |
| Package Cooled | QFN EP | Length - Overall | 3.15(Max) |
| Package Quantity | VQFN EP | Size / Dimension | 3 x 3 x 0.9mm |
| Number of Positions | 16 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 16-QFN (3x3) | ||
Product Info
| Type | Fanout Buffer (Distribution), Divider, Multiplexer | Series | CDCM1802 |
| Function | Clock Buffer/Divider | Software | SCAS759A |
| Manufacturer | Texas Instruments | Number of Circuits | 1 |
| RF Family/Standard | CDCM1802 | Utilized IC / Part | View |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
