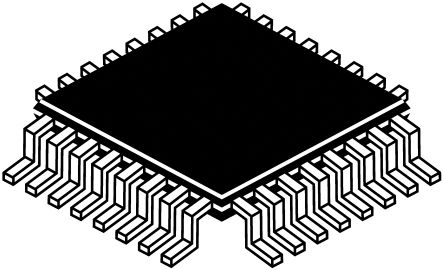

点击放大查看
CDCLVP110VF
| Manufacturer | |
| Description | Clock Driver 2-IN LVECL/LVPECL 32-Pin LQFP Tray IC CLK BUFFER 2:10 3.5GHZ 32LQFP CDCLVP110VF, Clock Driver LVECL, LVPECL 2-Input, 32-Pin LQFP Clock Drivers & Distribution 1:10 CLOCK DRIVER 1:10 LVPECL/HSTL to LVPECL Clock Driver 2输入 时钟生成器, LVECL，LVPECL输出, 32针 LQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-15357 | Product Category | Clock Drivers & Distribution |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Input | HSTL, LVPECL | Output | LVPECL |
| Input Type | HSTL、LVECL、LVPECL | Output Type | LVECL, LVPECL |
| Input Signal | HSTL|LVECL|LVPECL | Signal Types | HSTL/LVECL/LVPECL |
| Output Signal | LVPECL | Operating Mode | Differential |
| Voltage Rating | -2.375|2.375 V | Frequency - Max | 3.5GHz |
| Number of Inputs | 2 | Voltage - Output | LVECL|LVPECL |
| Voltage - Supply | -2.5|-3.3|2.5|3.3 V | Number of Outputs | 10 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 3.5 GHz |
| Ratio - Input:Output | 2:10 | Voltage - Supply (Min) | -3.8|3.8 V |
| Differential - Input:Output | Yes/Yes | ||
Mechanical
| Width | 7mm | Height | 1.4mm |
| Length | 7mm | Weight | 0.005993 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 32 | Package / Case | 32LQFP |
| Package Cooled | LQFP | Package Quantity | LQFP |
| Size / Dimension | 7 x 7 x 1.4mm | Number of Positions | 32 |
| Supplier Device Package | 32-LQFP (7x7) | ||
Product Info
| Type | Clock Driver | Series | CDCLVP110 |
| Software | SCAS683D | Manufacturer | Texas Instruments |
| Configuration | 1 x 2:1 | Functional Diagram | alt_scas683d.gif |
| Number of Circuits | 1 | Utilized IC / Part | View |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
