CDC337DW
| Manufacturer | |
| Description | Translator TTL to CMOS 20-Pin SOIC Tube Clock Drivers & Distribution 1-To-8 Clock Driver IC, CLOCK DRIVER, 1-8, SMD 1-To-8 (4 Same Frequency, 4 Divide-By-2) Clock Driver With Clear IC CLK BUFFER 1:8 80MHZ 20SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Clock Drivers & Distribution | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ||
Electrical
| Frequency | :80MHz | Input Type | :TTL |
| Output Type | 3-State | Output Signal | CMOS |
| Voltage Rating | 4.75 | Current - Output | :85mA |
| Voltage - Supply | 5 V | Number of Outputs | :8 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 80 MHz |
| Ratio - Input:Output | 1:8 | Voltage - Supply (Min) | 5.25 |
| Power Dissipation (Max) | 1.6 W | Propagation Delay (Max) | 10 |
| Current - Quiescent (Max) | 85 mA | Current - Output High, Low | 48 mA |
| Max Propagation Delay @ V, Max CL | 9@4.75V to 5.25V ns | ||
Mechanical
| Width | 7.6(Max) | Weight | 0.017662 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 13(Max) | Package Quantity | SOIC |
| Number of Positions | 20 | Shell Size - Insert | 2.35(Max) |
Product Info
| Type | Clock Drivers | Series | CDC337 |
| Process | BiCMOS | Function | Translator |
| Software | SCAS330B | Base Unit | :337 |
| Utilized IC / Part | View | Other Specifications | TTL to CMOS |
| Printed Circuit Board | 20 | ||
Environmental
| Operating Temperature | - 40 C | ||
Documents & Media
Similar Parts
RE932-06
Roth Elektronik

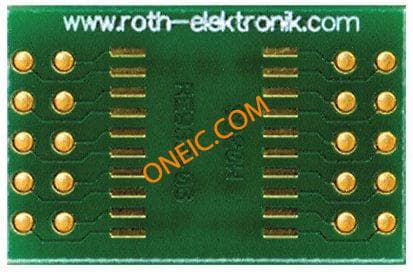

RE932-06, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 22.5 x 16 x 1.5mm FR4 ADAPTOR, SMD, SO-20W, 1.27MM Board: universal; multiadapter; W:25.5mm; L:16mm; SO20W Laboratory card FR4 Epoxide + chem. Ni/Au SO20w Adapter, RE932-06, Roth Elektronik
