CDC329AD
| Manufacturer | |
| Description | Clock Fanout Buffer 6-OUT 16-Pin SOIC Tube Clock Drivers & Distribution 1-To-6 Clock Driver IC CLK BUFFER 1:6 80MHZ 16SOIC 1-To-6 Clock Driver With Selectable Polarity 时钟生成器, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-6696-5 | Product Category | Clock Drivers & Distribution |
| Standard Package | Rail / Tube | Factory Pack Quantity | 40 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Input | TTL | Output | CMOS |
| Frequency | 80 MHz | Output Type | LVCMOS |
| Output Signal | CMOS | Power - Rated | 0.77 W |
| Voltage Rating | 4.75 V | Frequency - Max | 80 MHz |
| Voltage - Output | CMOS | Voltage - Supply | 5 V |
| Number of Outputs | 6 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 80 | Ratio - Input:Output | 1:6 |
| Voltage - Supply (Min) | 5.25 V | Input Logic Level - Low | TTL |
| Power - Average Forward | 770 mW | Power Dissipation (Max) | 770 mW |
| Current - Quiescent (Iq) | 40000 uA | Delay Time - Propagation | 5.9 ns |
| Current - Quiescent (Max) | 40 | Differential - Input:Output | No/No |
| Max Propagation Delay @ V, Max CL | 5.9@5V ns | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 9.9mm | Weight | 0.005471 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Length - Overall | 10(Max) |
| Package Quantity | SOIC | Size / Dimension | 9.9 x 3.91 x 1.58mm |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC N | ||
Product Info
| Type | Clock Drivers | Series | CDC329A |
| DELETED | Compliant | Software | SCAS328B |
| Manufacturer | Texas Instruments | Number of Circuits | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
RE932-04
Roth Elektronik
RE932-04, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 20.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, SO-16, 1.27MM Board: universal; multiadapter; W:20.5mm; L:13.5mm; SO16 Laboratory card FR4 Epoxide + chem. Ni/Au SO16 Adapter, RE932-04, Roth Elektronik
$32.8916
Details
RE932-05
Roth Elektronik

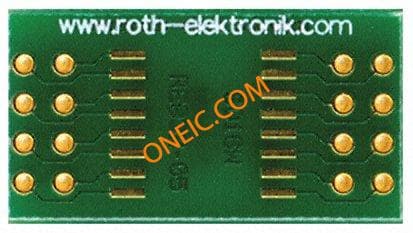

RE932-05, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 22.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, SO-16W, 1.27MM Board: universal; multiadapter; W:25mm; L:13.5mm; SO16W Laboratory card FR4 Epoxide + chem. Ni/Au SO16w Adapter, RE932-05, Roth Elektronik
