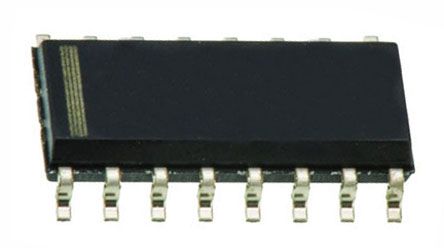

CD74HCT85M
| Manufacturer | |
| Description | Magnitude Comparator 4-Bit 16-Pin SOIC Tube IC COMPARATOR MAGNITUDE 16SOIC Comparator ICs High Speed CMOS 4-Bit Magnitude LOGIC, 4BIT MAG COMPARATOR, 16SOIC 4-Bit Magnitude Comparator , 4-Bit 非反相 幅度比较器, 4.5 → 5.5 V, 16针 SOIC封装 Logic Comparators High Speed CMOS 4-Bit Magnitude |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital Comparators | Product Category | Comparator ICs |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 40 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ||
Electrical
| Output | Active High | Voltage | 4.5 |
| Logic Type | HCT | Number of Bits | 4 |
| Voltage Rating | 4.5 | Comparator Type | Magnitude |
| Output Function | A<B, A=B, A>B | Current - Supply | 8 uA |
| Voltage - Supply | 5 V | Number of Channels | :4 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 70 |
| Voltage - Supply (Min) | 5.5 | Propagation Delay (Max) | 60 |
| Current - Quiescent (Iq) | 8µA | Delay Time - Propagation | 40 ns |
| Current - Quiescent (Max) | 0.08 | Current - Output High, Low | 4 mA |
| Current - Output Source/Sink | 4/-4 | Max Propagation Delay @ V, Max CL | 40@4.5V ns |
| Propagation Delay tpLH / tpHL (Max) | 50 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 4(Max) | Weight | 0.004998 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 10(Max) | Package Quantity | SOIC |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
Product Info
| Type | Magnitude Comparator | Series | CD74HCT85 |
| Process | CMOS | Function | :4-Bit Magnitude Comparator |
| Polarity | Non-Inverting | Software | SCHS136E |
| RF Family/Standard | HCT | Utilized IC / Part | View |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55°C ~ 125°C |
