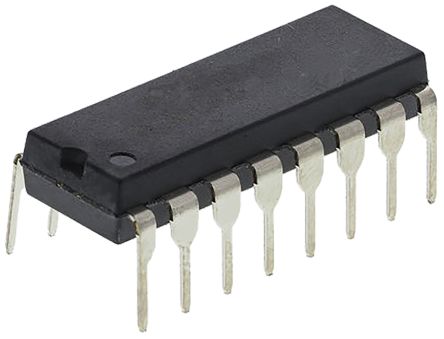

点击放大查看
+CD74HCT7046AE
| Manufacturer | |
| Description | PLL Single 12MHz to 18MHz 16-Pin PDIP Tube 16 LEAD PDIP Phase Locked Loops - PLL High Speed CMOS w/VCO & Lock Detect PLL 16-Pin PDIP Tube IC PLL W/VCO/LOCK DETECT 16-DIP CD74HCT7046AE, PLL Circuit, 16-Pin PDIP IC, 74HCT CMOS, 74HCT7046, DIP16 High Speed CMOS Logic Phase-Locked Loop with VCO and Lock Detector Texas Instruments 锁相环电路, 16针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Phase Locked Loops - PLL | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :74HCT7046 | Rad Hardened | No |
Electrical
| PLL | Yes | Input | CMOS |
| Output | CMOS | Voltage | 5 |
| Frequency | :38MHz | Logic Type | :747046 |
| Number of Bits | 1 | Voltage Rating | 4.5 V |
| Frequency - Max | 38MHz | Current - Output | :8µA |
| Voltage - Supply | 5 V | Divider/Multiplier | No/No |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 25 | Ratio - Input:Output | 1:2 |
| Voltage - Supply (Min) | 5.5 V | Current - Quiescent (Max) | 0.08 |
| Differential - Input:Output | No/No | Current - Output Source/Sink | 4/-4 |
| Propagation Delay tpLH / tpHL (Max) | 56 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 19.69(Max) |
| Package Quantity | PDIP | Size / Dimension | 19.3 x 6.35 x 4.57mm |
| Number of Positions | 16 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Supplier Device Package | 16-PDIP | ||
Product Info
| Type | PLL | Series | CD74HCT7046A |
| DELETED | Compliant | Function | :Phase Locked Loop with Lock Detector |
| Software | SCHS218C | Base Unit | :74 |
| Plug Type | :VCO | Programmable | No |
| Number of Gates | :1 | Number of Circuits | 1 |
| RF Family/Standard | CD74HCT7046 | Utilized IC / Part | View |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
| Operating Temperature - Junction | 125C | ||
