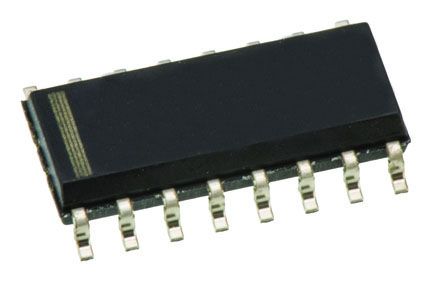

CD74HCT4052M
| Manufacturer | |
| Description | 16 LEAD SOIC(150MIL) Analog Multiplexer Dual 4:1 16-Pin SOIC Tube Multiplexer Switch ICs Analog HS CMOS IC MUX/DEMUX DUAL 4X1 16SOIC CD74HCT4052M, Multiplexer/Demultiplexer Dual 4:1, 5V, 16-Pin, SOIC IC, SM, LOGIC, 74HCT, MULTIPLEXER High Speed CMOS Differential 4-Channel Analog Multiplexer/Demultiplexer with TTL inputs Texas Instruments 多路复用器/多路分离器, 双 4:1, 5 V电源电压, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Multiplexer Switch ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 40 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 2 x 4:1 | Voltage | 5 |
| Input Type | TTL | Logic Type | :744052 |
| Output Type | CMOS | Input Signal | Yes |
| Turn On Time | 70@4.5V ns | Output Signal | Single Ended |
| Power - Input | Single/Dual | Number of Bits | 4 |
| Current - Output | :16µA | Delay Time - OFF | 50@4.5V ns |
| Number of Inputs | 8 | Voltage - Supply | ±1 V |
| Number of Outputs | 2 | Power Supply Type | Single|Dual |
| Number of Channels | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 185 | Resistance - RDS(On) | :40ohm |
| Schmitt Trigger Input | No | Voltage Supply Source | Single, Dual Supply |
| Delay Time - Propagation | 12 ns | Current - Quiescent (Max) | 0.016 |
| On-State Resistance (Max) | 180@4.5V Ohm | Voltage - Supply Span (Typ) | �3 V |
| Switch Time (Ton, Toff) (Max) | 50 ns | Max Propagation Delay @ V, Max CL | 12@4.5V|8@±4.5V ns |
| Multiplexer/Demultiplexer Circuit | 4:1 | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 9.9mm | Weight | 0.004998 oz |
| Bandwidth | 185 | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 10(Max) | Package Quantity | SOIC |
| Size / Dimension | 9.9 x 3.91 x 1.58mm | Number of Positions | 16 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 16-SOIC N |
Product Info
| Type | Analog Multiplexer | Series | CD74HCT4052 |
| Features | Low Power Low Crosstalk Break-before-make | Function | Multiplexer/Demultiplexer |
| Software | SCHS122J | Switch Type | Analogue Multiplexer |
| Configuration | Dual 4:1 | Number of Circuits | :2 |
| Number of Switches | 2 | RF Family/Standard | HCT |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | + 125 C |
