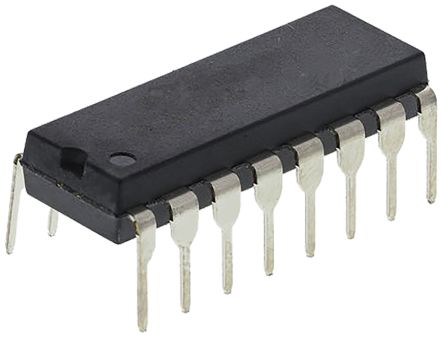

CD74HCT4051E
| Manufacturer | |
| Description | Analog Multiplexer Single 8:1 16-Pin PDIP Tube Multiplexer Switch ICs 8-Channel Analog IC MUX/DEMUX 8X1 16DIP CD74HCT4051E, Multiplexer/Demultiplexer Single 8:1, 5V, 16-Pin, PDIP IC, ANALOG MUX/DMUX, 8 X 1, DIP-16 IC, LOGIC, ANALOG MUX/DEMUX, 16DIP High Speed CMOS 8-Channel Analog Multiplexer/Demultiplexer with TTL inputs Texas Instruments 多路复用器/多路分离器, 单 8:1, 5 V电源电压, 16针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Multiplexer Switch ICs | Standard Package | Bulk, Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 1 x 8:1 | Voltage | 5 |
| Input Type | TTL | Logic Type | :744051 |
| Output Type | CMOS | Input Signal | Yes |
| Turn On Time | 55@4.5V ns | Output Signal | Single Ended |
| Power - Input | Single/Dual | Number of Bits | 8 |
| Current - Output | :16µA | Delay Time - OFF | 45@4.5V ns |
| Number of Inputs | 8 | Voltage - Supply | ±1 V |
| Number of Outputs | 1 | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 180 | Schmitt Trigger Input | No |
| Voltage Supply Source | Single, Dual Supply | Delay Time - Propagation | 12 ns |
| Current - Quiescent (Max) | 0.016 | On-State Resistance (Max) | 180@4.5V Ohm |
| Voltage - Supply Span (Typ) | �3 V | Switch Time (Ton, Toff) (Max) | 45 ns |
| Max Propagation Delay @ V, Max CL | 12@4.5V|8@±4.5V ns | Multiplexer/Demultiplexer Circuit | 8:1 |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Bandwidth | 180 | Packaging | Tube |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :16 | Package / Case | 16PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 19.69(Max) | Package Quantity | PDIP |
| Size / Dimension | 19.3 x 6.35 x 4.57mm | Number of Positions | 16 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 16-PDIP |
Product Info
| Type | Analog Multiplexer | Series | CD74HCT4051 |
| Features | Low Power Low Crosstalk Break-before-make | Function | Multiplexer/Demultiplexer |
| Software | SCHS122J | Switch Type | Analogue Multiplexer |
| Configuration | Single 8:1 | Number of Circuits | :1 |
| Number of Switches | 1 | RF Family/Standard | HCT |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | + 125 C |
