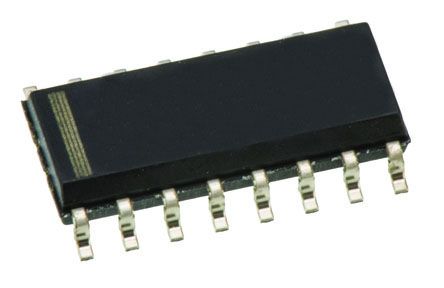

点击放大查看
CD74HCT4046AM96
| Manufacturer | |
| Description | 16 LEAD SOIC(150MIL) PLL Single Up to 18MHz 16-Pin SOIC T/R Phase Locked Loops - PLL PLL w/ VCO PLL 16-Pin SOIC T/R IC PLL W/VCO HS 16-SOIC High Speed CMOS Logic Phase-Locked-Loop with VCO Texas Instruments 相位锁环路, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-14559-2 | Product Category | Phase Locked Loops - PLL |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PLL | Yes | Input | CMOS |
| Output | CMOS | Voltage | 5 |
| Current Ratio | 1:4 | Number of Bits | 1 |
| Frequency - Max | 38MHz | Oscillator Type | No/No |
| Voltage - Supply | 5 V | Divider/Multiplier | No/No |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 25 | Ratio - Input:Output | 1:4 |
| Voltage - Supply (Min) | 4.5 V | Current - Quiescent (Max) | 0.08 |
| Differential - Input:Output | No/No | Current - Output Source/Sink | 4/-4 |
| Propagation Delay tpLH / tpHL (Max) | 85 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 9.9mm | Weight | 0.004998 oz |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Length - Overall | 10(Max) |
| Package Quantity | SOIC | Size / Dimension | 9.9 x 3.91 x 1.58mm |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC N | ||
Product Info
| Type | PLL | Series | CD74HCT4046A |
| DELETED | Compliant | Software | SCHS204J |
| Manufacturer | Texas Instruments | Programmable | No |
| Number of Circuits | 1 | RF Family/Standard | CD74HCT4046 |
| Utilized IC / Part | View | Output Configuration | Surface Mount |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
| Operating Temperature - Junction | 125C | ||
