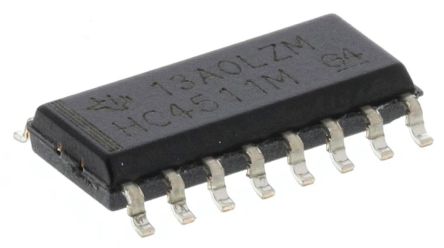

CD74HC4511M
| Manufacturer | |
| Description | Latch/Decoder/Driver Single 4-to-7 16-Pin SOIC Tube IC 7 SEG LATCH/DEC/DRVR 16-SOIC Encoders, Decoders, Multiplexers & Demultiplexers BCD to 7 Seg LOGIC, 7 SEG LATCH/DEC/DRVR, 16SOIC IC: digital; BCD to 7 segment, decoder, driver, latch; SO16 High Speed CMOS Logic BCD-to-7 Segment Latch/Decoder/Driver Logic IC SO-16, CD74HC4511, CD74HC4511M, Texas Instruments Texas Instruments 非反相 解码器、驱动器, 2 to 6 V电源, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Decoders / Demultiplexers | Other Names | 296-9232-5 |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers | Standard Package | Bulk, Rail / Tube |
| Factory Pack Quantity | 40 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 3.3 5 | Interface | BCD |
| Logic Type | HC | Output Type | Standard |
| Display Type | LED | Power - Rated | 114 mW |
| Number of Bits | 7 | Voltage Rating | 2.5|3.3|5 V |
| Current - Output | 8µA | Number of Inputs | 4 |
| Voltage - Supply | 2 V ~ 6 V | Number of Outputs | 7 |
| Propagation Delay | :51ns | Number of Elements | 1 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 28 |
| Voltage - Supply (Min) | 2 V to 6 V | Propagation Delay (Max) | 450 |
| Current - Quiescent (Iq) | 8 uA | Delay Time - Propagation | 450 ns |
| Current - Quiescent (Max) | 0.08 | Current - Output High, Low | -10 mA |
| Number of Outputs and Type | 0 | Current - Output Source/Sink | 5.2/-10 |
| Propagation Delay tpLH / tpHL (Max) | 60 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 4(Max) | Weight | 0.004998 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 10(Max) |
| Package Quantity | SOIC | Number of Positions | 16 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 16-SOIC N |
Product Info
| Spg | 40 | Type | digital |
| Series | CD74HC4511 | Process | CMOS |
| Function | Latch/Decoder/Driver | Polarity | Non-Inverting |
| Software | SCHS279D | Technology | CMOS |
| Configuration | 7 Segment | Number of Lines | 4 / 7 |
| Number of Units | 1 | RF Family/Standard | HC |
| Utilized IC / Part | BCD to 7 segment, decoder, driver, latch | Digits or Characters | 1 Digit |
| Printed Circuit Board | 16 | Number of Inputs and Type | 1 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
