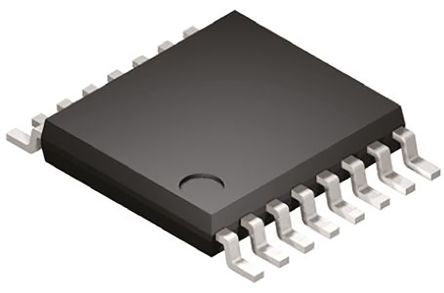

CD74HC4046APWR
| Manufacturer | |
| Description | PHASE-LOCKED LOOP WITH VCO PLL Single Up to 18MHz 16-Pin TSSOP T/R Phase Locked Loops - PLL PLL w/ VCO PLL 16-Pin TSSOP T/R IC PLL W/VCO 16-TSSOP IC, PLL WITH VCO, 18MHZ, 16-TSSOP High Speed CMOS Logic Phase-Locked-Loop with VCO Texas Instruments 锁相环电路, 16针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-9210-2 | Product Category | Phase Locked Loops - PLL |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| PLL | Yes | Input | CMOS |
| Output | CMOS | Voltage | 3.3 5 |
| Frequency | :38MHz | Number of Bits | 1 |
| Frequency - Max | 38MHz | Current - Output | :8µA |
| Voltage - Supply | 2.5|3.3|5 V | Divider/Multiplier | No/No |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 70 | Ratio - Input:Output | 1:4 |
| Voltage - Supply (Min) | 2 V | Current - Quiescent (Max) | 0.08 |
| Differential - Input:Output | No/No | Current - Output Source/Sink | 5.2/-5.2 |
| Propagation Delay tpLH / tpHL (Max) | 64 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 4.5(Max) | Weight | 0.002183 oz |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16TSSOP |
| Package Cooled | TSSOP | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Type | PLL | Series | CD74HC4046A |
| DELETED | Compliant | Software | SCHS204J |
| Plug Type | :Frequency Synthesis | Programmable | No |
| Number of Circuits | 1 | RF Family/Standard | CD74HC4046 |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Online Document
PDF Document
