CD74ACT245M
| Manufacturer | |
| Description | Bus XCVR Single 8-CH 3-ST 20-Pin SOIC Tube Bus Transceivers Tri-State Non-Invert IC TRANSCEIVER 8BIT N-INV 20SOIC 74ACT CMOS, SMD, 74ACT245, SOIC20 Octal Non-Inverting Bus Transceivers with 3-State Outputs , 8位 非反相 总线收发器, 20针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-4271-5 | Product Category | Bus Transceivers |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Part Status | :74ACT245 |
| Rad Hardened | No | ||
Electrical
| Voltage | 5 | Data Rate | Bi-Directional |
| Input Type | TTL | Logic Type | ACT |
| Output Type | 3-State | Output Signal | CMOS |
| Number of Bits | 8 | Voltage Rating | 5 V |
| Number of Inputs | :1 | Voltage - Output | CMOS |
| Voltage - Supply | 5.5 V | Number of Channels | 8 |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 90 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 4.5 V | Input Logic Level - Low | TTL |
| Delay Time - Propagation | 10 ns | Input Logic Level - High | TTL |
| Current - Quiescent (Max) | 0.08 | Current - Output High, Low | - 24 mA |
| Number of Bits per Element | 8 | Current - Output Source/Sink | -24/24 |
| Propagation Delay tpLH / tpHL (Max) | 8.7 | ||
Mechanical
| Weight | 0.017662 oz | Packaging | Tube |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 25 | TUBE |
| Number of Positions | 20 | Supplier Device Package | 20-SOIC |
Product Info
| Series | CD74ACT245 | DELETED | Compliant |
| Function | Bus Transceiver | Polarity | Non-Inverting |
| Software | SCHS245B | Base Unit | :74 |
| Technology | CMOS | Number of Gates | :8 |
| Number of Circuits | 8 | RF Family/Standard | ACT |
| Utilized IC / Part | View | Number of Inputs and Type | 1 Low/High |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | + 125 C |
Documents & Media
PDF Document
PDF Document
Similar Parts
RE932-06
Roth Elektronik

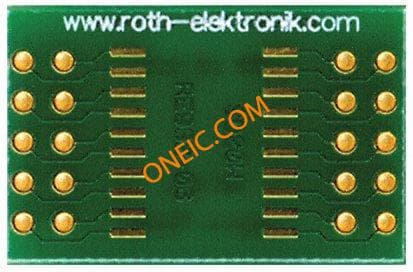

RE932-06, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 22.5 x 16 x 1.5mm FR4 ADAPTOR, SMD, SO-20W, 1.27MM Board: universal; multiadapter; W:25.5mm; L:16mm; SO20W Laboratory card FR4 Epoxide + chem. Ni/Au SO20w Adapter, RE932-06, Roth Elektronik
