CD4071BE
| Manufacturer | |
| Description | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube IC 2-IN OR GATE QUAD 14-DIP CD4071BE, Logic Gate Quad 2 Input OR, 4.2mA 3 to 18V 14-Pin PDIP Logic Gates Quad 2-Input IC, 4000 CMOS, 4071, DIP14, 18V CMOS Quad 2-Input OR Gate Logic IC DIL-14, CD4071, CD4071BE, Texas Instruments Texas Instruments 逻辑门, 4.2mA, 3 → 18 V, 14针 PDIP封装 |
| Category |
Business
| Product | OR | Product Category | Logic Gates |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Part Status | :4071 |
| Rad Hardened | No | High Reliability | Y |
Electrical
| Voltage | 10 | Input Type | CMOS |
| Logic Type | OR Gate | Output Type | CMOS |
| Number of Bits | 4 | Voltage Rating | 3 V |
| Current - Output | :6.8mA | Number of Inputs | 2 |
| Voltage - Supply | 3 V ~ 18 V | Number of Outputs | 1 |
| Propagation Delay | 50pF | Number of Elements | 4 |
| Current Rating (Max) | Military | Frequency - Output 1 | 8 |
| Voltage - Supply (Min) | 18 V | Current - Quiescent (Iq) | 5 uA |
| Delay Time - Propagation | 250 ns | Logic Voltage - VIL, VIH | 1.5 V ~ 4 V |
| Current - Quiescent (Max) | 1µA | Current - Output High, Low | 3.4mA, 3.4mA |
| Current - Output Source/Sink | 1.5/-1.5 | Max Propagation Delay @ V, Max CL | 250@5V|120@10V|90@15V ns |
| Propagation Delay tpLH / tpHL (Max) | 120 | ||
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.032734 oz |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :14 | Package / Case | 14PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | 25 | TUBE | Size / Dimension | 19.3 x 6.35 x 4.57mm |
| Number of Positions | 14 | Supplier Device Package | 14-PDIP |
Product Info
| Series | CD4071B | Function | OR |
| Software | SCHS056D | Base Unit | :4071 |
| Technology | CMOS | Number of Gates | 4 |
| Number of Circuits | 4 | RF Family/Standard | CD4000 |
| Utilized IC / Part | :CD4071BE | Number of Inputs and Type | 0 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
Documents & Media
Similar Parts
MC14071BCPG
on semiconductor
OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Rail IC GATE OR QUAD CMOS 14DIP MC14071BCPG, Logic Gate Quad 2 Input OR, 4.2mA 3 to 18V 14-Pin PDIP CMOSLogic,Quad2-InputORGate,PDIP-14,Pb-Free

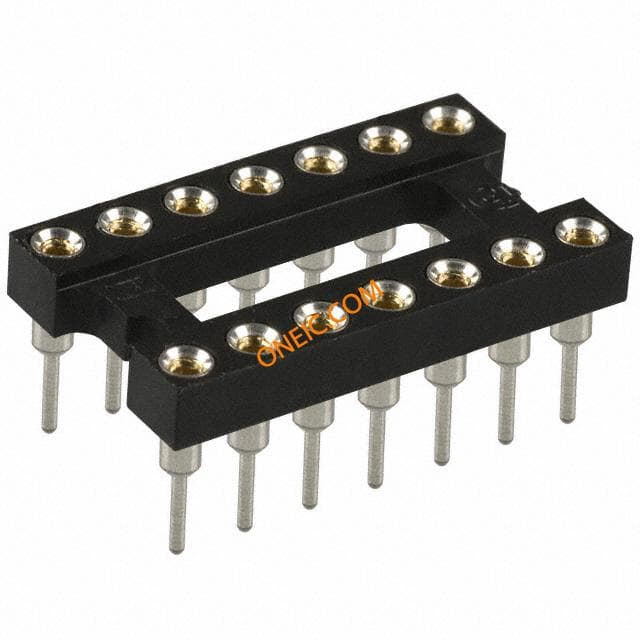

14-3518-10
Aries Electronics
14 PIN SOLDER TAIL DIP SOCKET IC & Component Sockets 14P SOLDER TIN/GLD SOCKET, DIP, 14WAY

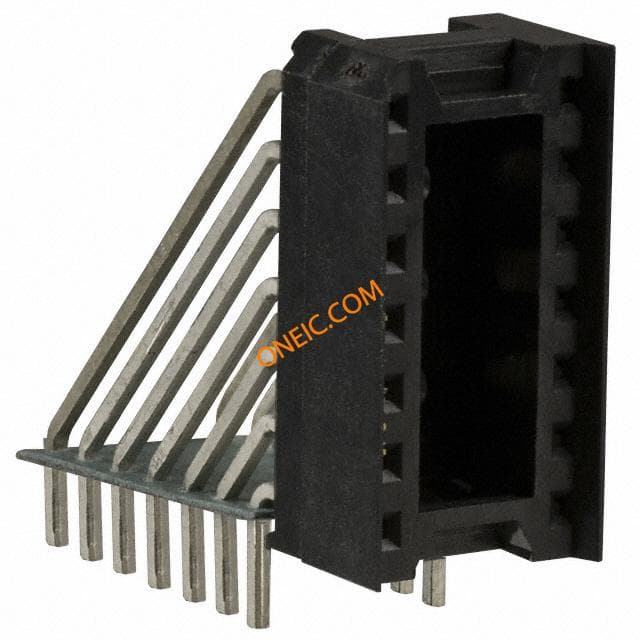

14-810-90T
