CD4063BE
| Manufacturer | |
| Description | Magnitude Comparator 4-Bit 16-Pin PDIP Tube Comparator ICs 4-Bit Magnitude IC COMPARATOR MAGNITUDE 4B 16DIP IC, LOGIC, 4000, COMPARATOR 4-Bit Magnitude Comparators Logic IC DIL-16, CD4063, CD4063BE, Texas Instruments Logic Comparators 4-Bit Magnitude |
| Category |
Business
| Product | Digital Comparators | Other Names | 296-14120-5 |
| Product Category | Comparator ICs | Standard Package | Bulk, Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | Active High | Voltage | 10 |
| Logic Type | CD4000 | Number of Bits | 4 |
| Voltage Rating | 3 | Comparator Type | :Magnitude |
| Output Function | A<B, A=B, A>B | Voltage - Supply | 3.3|5|9|12|15 V |
| Number of Channels | :4 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 8 | Voltage - Supply (Min) | 3 V |
| Propagation Delay (Max) | 1250 | Current - Quiescent (Iq) | 100µA |
| Delay Time - Propagation | 1250 ns, 500 ns, 350 ns | Current - Quiescent (Max) | 0.3 |
| Current - Output High, Low | 4.2(Min) mA | Current - Output Source/Sink | 4/-4 |
| Max Propagation Delay @ V, Max CL | 1250@5V|500@10V|350@15V ns | Propagation Delay tpLH / tpHL (Max) | 500 |
Mechanical
| Width | 6.6(Max) | Weight | 0.033570 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 19.69(Max) |
| Package Quantity | PDIP | Number of Positions | 16 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | ||
Product Info
| Type | Magnitude Comparator | Series | CD4063B |
| Process | CMOS | Function | :CMOS 4bit Magnitude Comparator |
| Polarity | Non-Inverting | Software | SCHS050C |
| Technology | CMOS | RF Family/Standard | CD4000 |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | + 125 C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts
1-390261-4
te connectivity / amp
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube DIP Sockets CONN IC SOCKET VERT 16POS TIN 16 way Augat tin plate DIL socket,0.3in IC & Component Sockets 16P ECONOMY TIN Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 16Row-to-Row Spacing = 7.62 mmThru HoleMount Style = VerticalSearch Keywords:IC sockets, solderless, NIC, Network Interface Cards, PC Cards, EIA RS-415, MIL-S-83734, dual in-line IC package, SOCKET IC, DIL, 0.3", 16WAY Socket,DIP;16Pins;DualLeaf;EconomyLadder;0.3In.;PhosphorBronze;Tin/Lead DIL socket 16 PU=30 ST, 1-390261-4, TE Connectivity TE Connectivity 垂直 2.54mm 节距 16 路, 通孔 模压引脚 封闭式框架 DIL 插座, 1A
16-3518-00
Aries Electronics

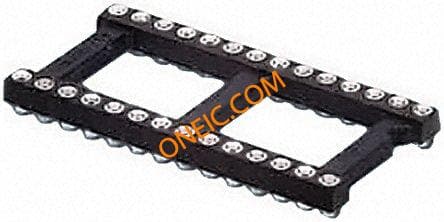

518 SMD OPEN FRAME COLLET SOCKET 16 pin SMT open frame collet socket IC & Component Sockets SURFACE MOUNT 16 PIN SOCKET IC, SMD, 16WAY Aries Electronics 垂直 2.54mm 节距 16 路 SMT 开放式框架 DIL 插座, 3A
