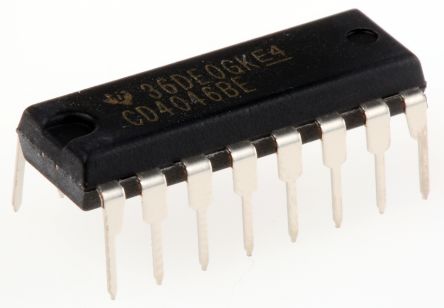

CD4046BEE4
| Manufacturer | |
| Description | PLL Single 0.3MHz to 2.4MHz 16-Pin PDIP Tube Phase Locked Loops - PLL Micropower PLL IC PHASE-LOCK LOOP MCPWR 16-DIP CD4046BEE4, PLL Circuit, 16-Pin PDIP PLL 16-Pin PDIP Tube CMOS Micropower Phase-Locked Loop NEUTRAL CD4046BE 锁相环电路, 16针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Phase Locked Loops - PLL | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| PLL | Yes | Input | CMOS |
| Output | CMOS | Voltage | 5 10 15 |
| Number of Bits | 1 | Voltage Rating | 3 V |
| Frequency - Max | 2.4MHz | Voltage - Supply | 3.3|5|9|12|15 V |
| Divider/Multiplier | Yes/No | Number of Elements | 1 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 8 |
| Ratio - Input:Output | 1:1 | Voltage - Supply (Min) | 18 V |
| Current - Quiescent (Max) | 1 | Differential - Input:Output | No/No |
| Current - Output Source/Sink | 4/-4 | Propagation Delay tpLH / tpHL (Max) | 300 |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Packaging | Tube | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Package Quantity | 25 | TUBE | Size / Dimension | 19.3 x 6.35 x 4.57mm |
| Number of Positions | 16 | Supplier Device Package | 16-PDIP |
Product Info
| Type | PLL | Series | CD4046B |
| Function | Y | Software | SCHS043B |
| Manufacturer | Texas Instruments | Programmable | No |
| Number of Circuits | 1 | RF Family/Standard | CD4046 |
| Utilized IC / Part | View | ||
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
| Operating Temperature - Junction | 125C | ||
