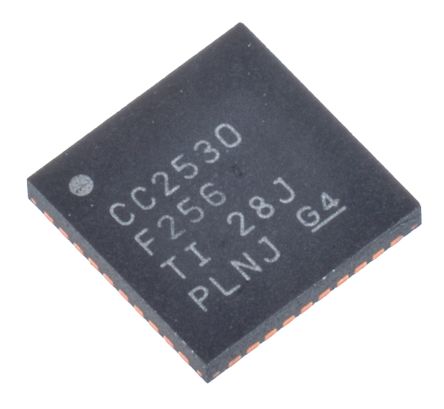

CC2530F256RHAT
| Manufacturer | |
| Description | SECOND GENERATION SYSTEM-ON-CHIP SOLUTION FOR 2.4 GHZ RF System on a Chip - SoC 2nd Gen SOC Solution SOC CC2530 8051 40-Pin VQFN EP T/R IC SOC IEEE 802.15.4/ZIG 40VQFN CC2530F256RHAT, System-On-Chip Microcontroller CMOS for IEEE 802.15.4, ZigBee, 2 to 3.6V 40-Pin VQFN IC, SOC, 2.4GHZ, 802.15.4, 40QFN Second Generation System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / RF4CE / ZigBee Texas Instruments 片上系统 SOC, 微控制器, CMOS技术, 用于IEEE 802.15.5, ZigBee, 2 → 3.6 V, 40针 VQFN封装 RF System on a Chip - SoC IC RF ZigBee 802.15.4 SoC 2.4Ghz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-24547-2 | Product Category | RF System on a Chip - SoC |
| Standard Package | 250 | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| RAM Size | 8KB | Core Type | 8051 |
| Data Rate | :250Kbps | Frequency | 2.4 GHz |
| Interface | 2-Wire, SPI, UART | Clock Rate | 32 |
| Input Type | :8051 Compatible | Modulation | :DSSS |
| Memory Size | 8 KB | Sensitivity | - 97 dBm |
| Output Power | 4.5 dBm | Number of I/O | 21 |
| Data Interface | PCB, Surface Mount | Power - Output | 8dBm |
| Voltage Rating | 2 V | Data Rate (Max) | 250 Kbps |
| Frequency - Max | :12.75GHz | Frequency - Min | :1GHz |
| Frequency Range | :1GHz to 12.75GHz | Current - Supply | 24.3 mA |
| Voltage - Supply | 2 V to 3.6 V | Number of Channels | 8 |
| Current - Receiving | 29.6mA | Program Memory Size | 256 KB |
| Program Memory Type | Flash | Current - Transmitting | 29mA |
| Voltage - Supply (Min) | 3.6 V | Frequency (Center/Band) | :IEEE802.15.4, ZigBee |
| Current - Supply (Main IC) | 33.5 mA | Number of Bits per Element | 12 bit |
| Frequency Bands (Low / High) | :2.4GHz | Distance - Control To Sensor (Max) | Personal (~10m) Home/Office/Enterprise (~100m) |
| Common Mode Transient Immunity (Min) | Automotive | ||
Mechanical
| Width | 6mm | Height | 0.9mm |
| Length | 6mm | Weight | 0.00022 |
| Packaging | Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :40 |
| Package / Case | QFN-40 | Package Cooled | VQFN |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 6.15(Max) |
| Package Quantity | VQFN EP | Size / Dimension | 6 x 6 x 0.9mm |
| Antenna Connector | PCB, Surface Mount | Number of Positions | 40 |
| Shell Size - Insert | 0.95(Max) | Number of Cores/Bus Width | 8 bit |
Product Info
| Type | Zigbee | Series | CC253 |
| Features | Yes | Protocol | Yes |
| Software | SWRS081B | Topology | Mesh/Self Healing Star or Point to Point |
| Technology | CMOS | Application | 2.4-GHz IEEE 802.15.4 Systems RF4CE Remote Control Systems (64-KB Flash and Higher) ZigBee Systems (256-KB Flash) Home/Building Automation Lighting Systems Industrial Control and Monitoring Low-Power Wireless Sensor Networks Consumer Electronics Health Care |
| On-Chip RAM | Yes | Programmable | Yes |
| Pattern Number | Y | Number of Nodes | <10 10 to 250 250 to 500 500 to 5000 >5000 |
| Number of Timers | 4 | Operating System | Android Linux No OS |
| Network Technology | Use custom gateway or not required | RF Family/Standard | CC2530 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Application Specifics | ZigBee/ IEEE 802.15.4 | Printed Circuit Board | 40 |
| Battery Type, Function | AAA Battery AA Battery Rechargable (Li-ION) | Modulation or Protocol | 802.15.4 Zigbee |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | - 40 C to + 125 C |
| Operating Temperature - Junction | 125C | ||
